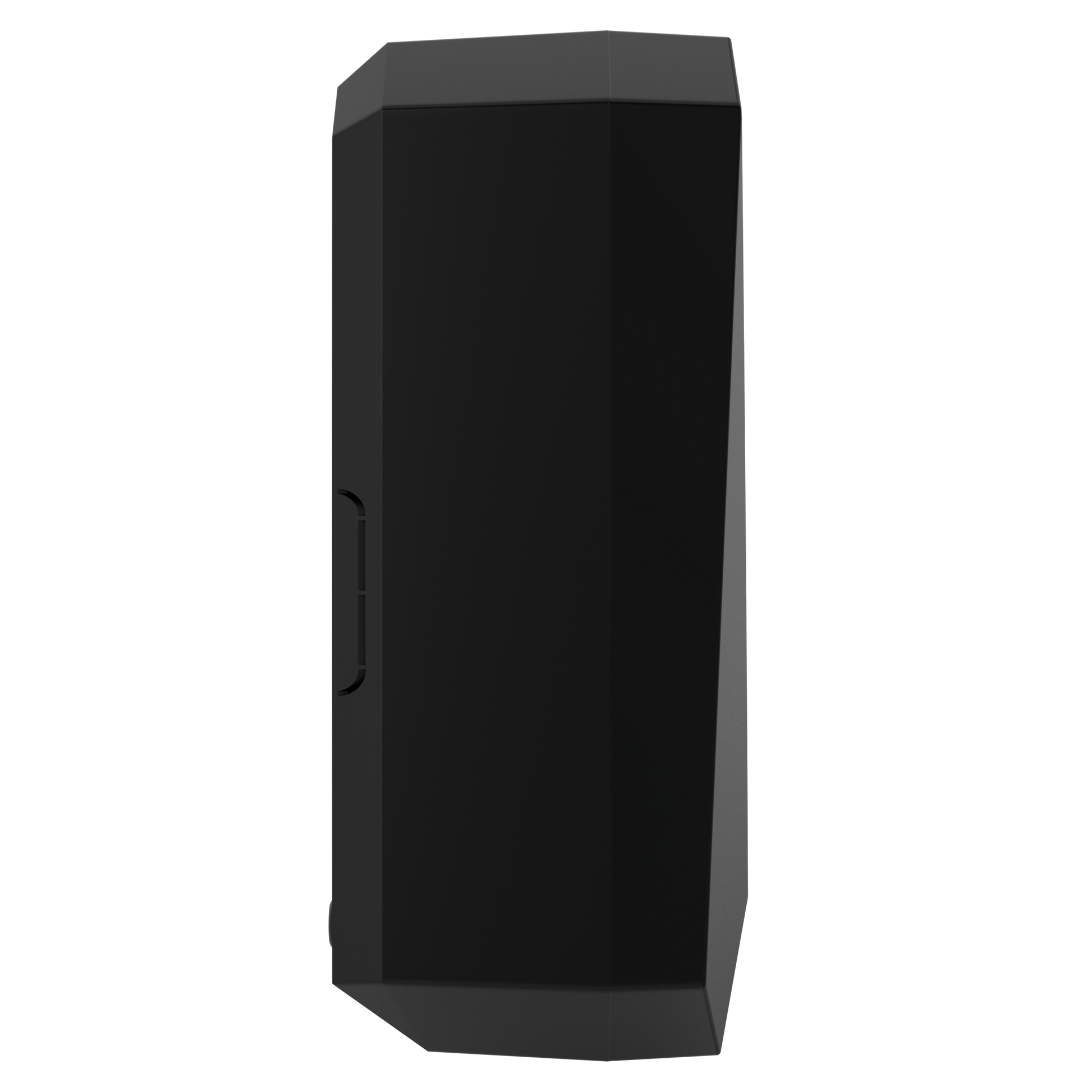

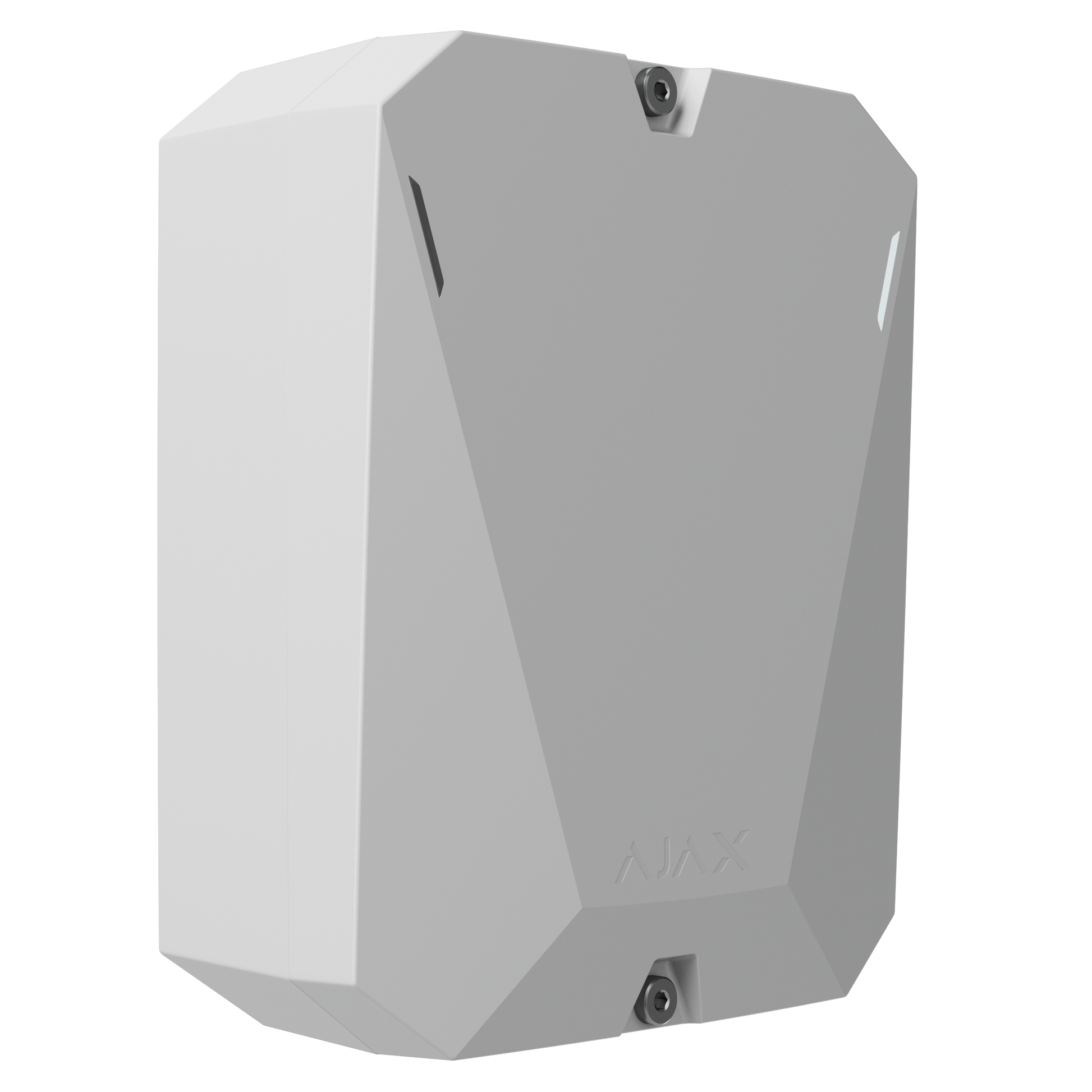

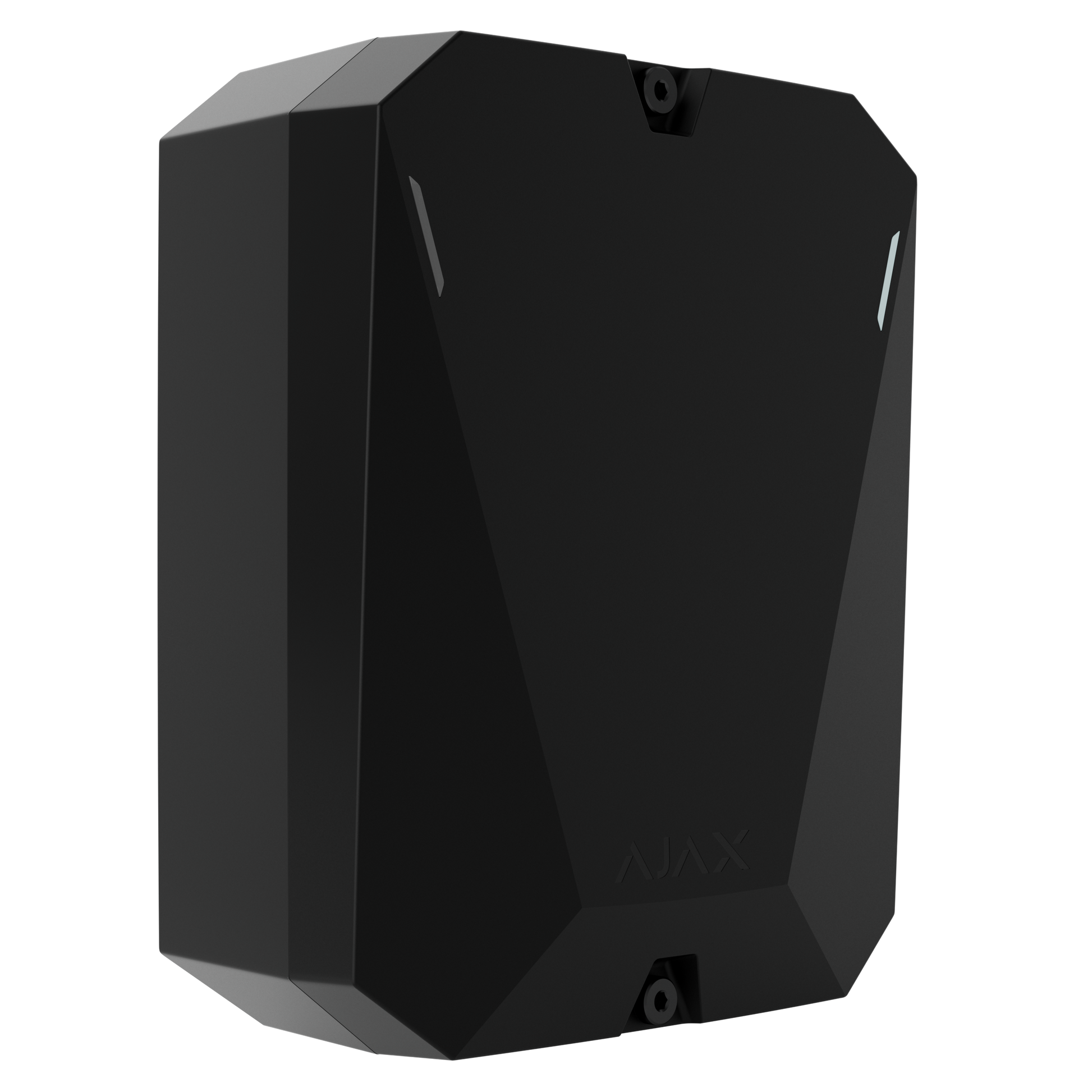

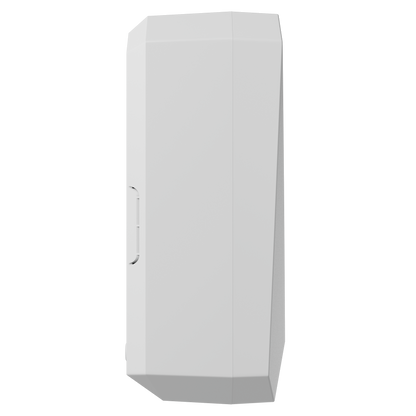

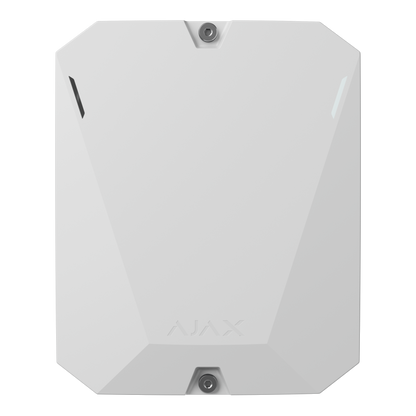

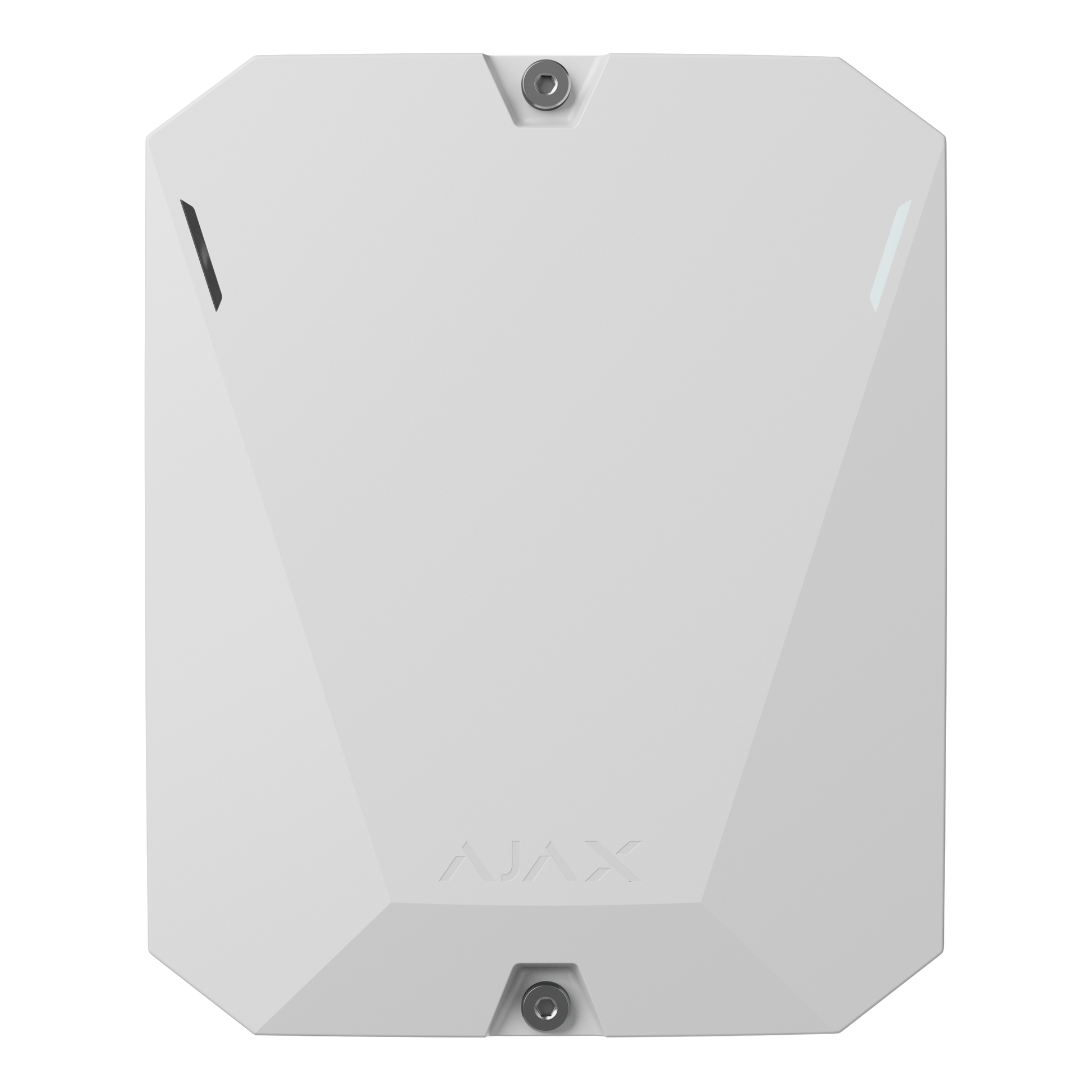

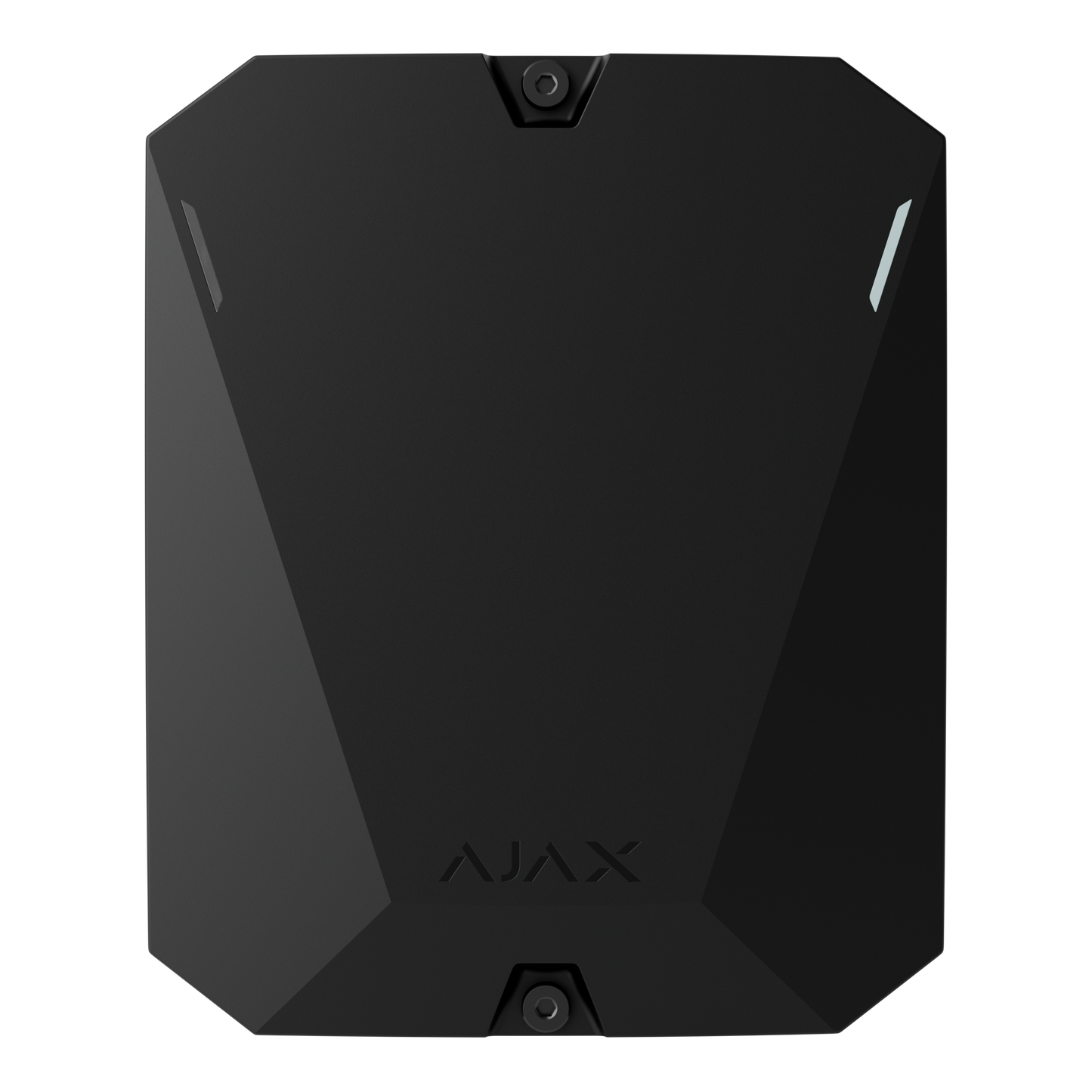

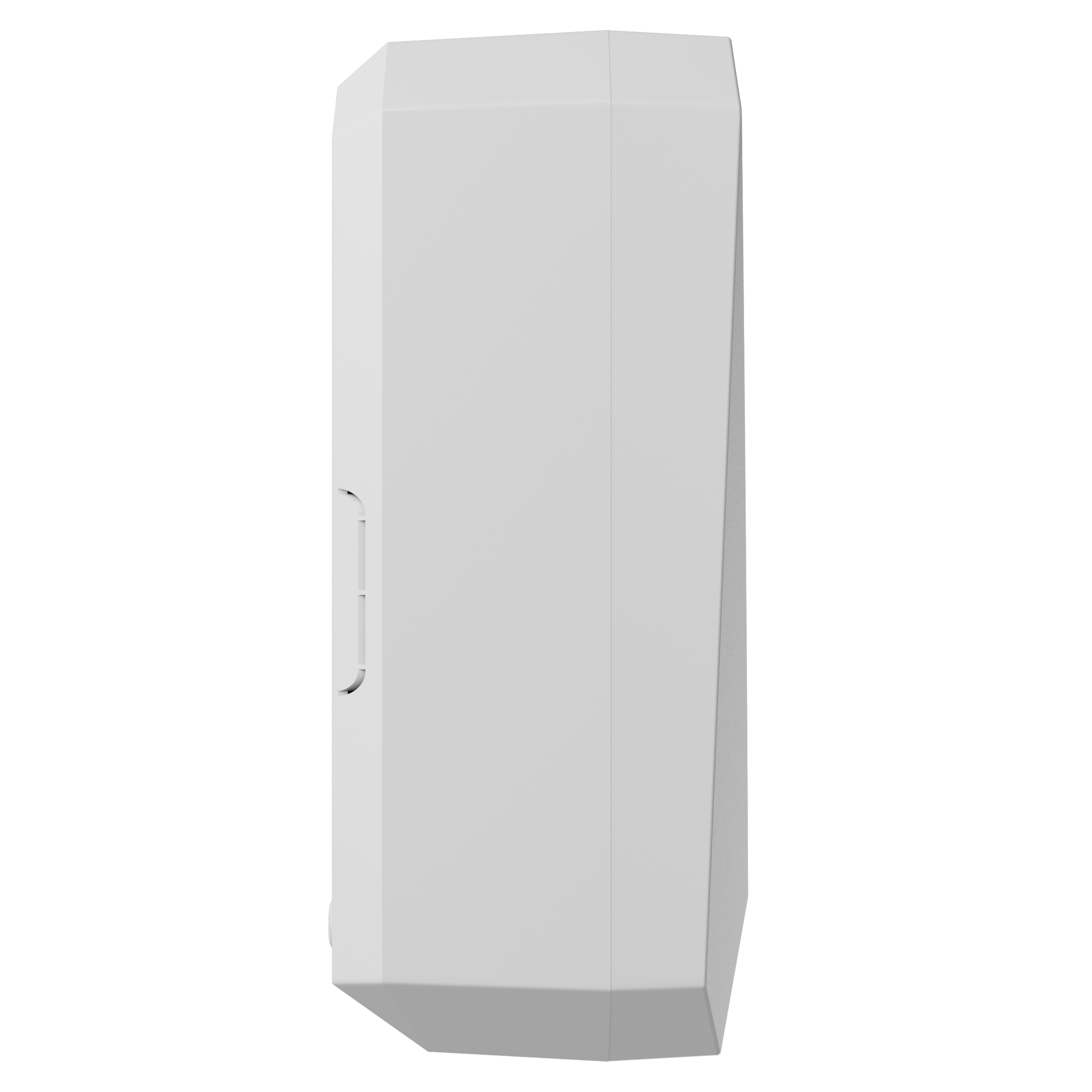

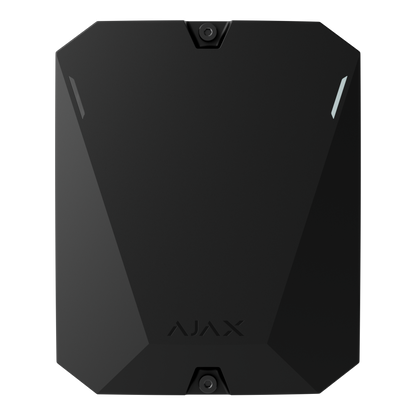

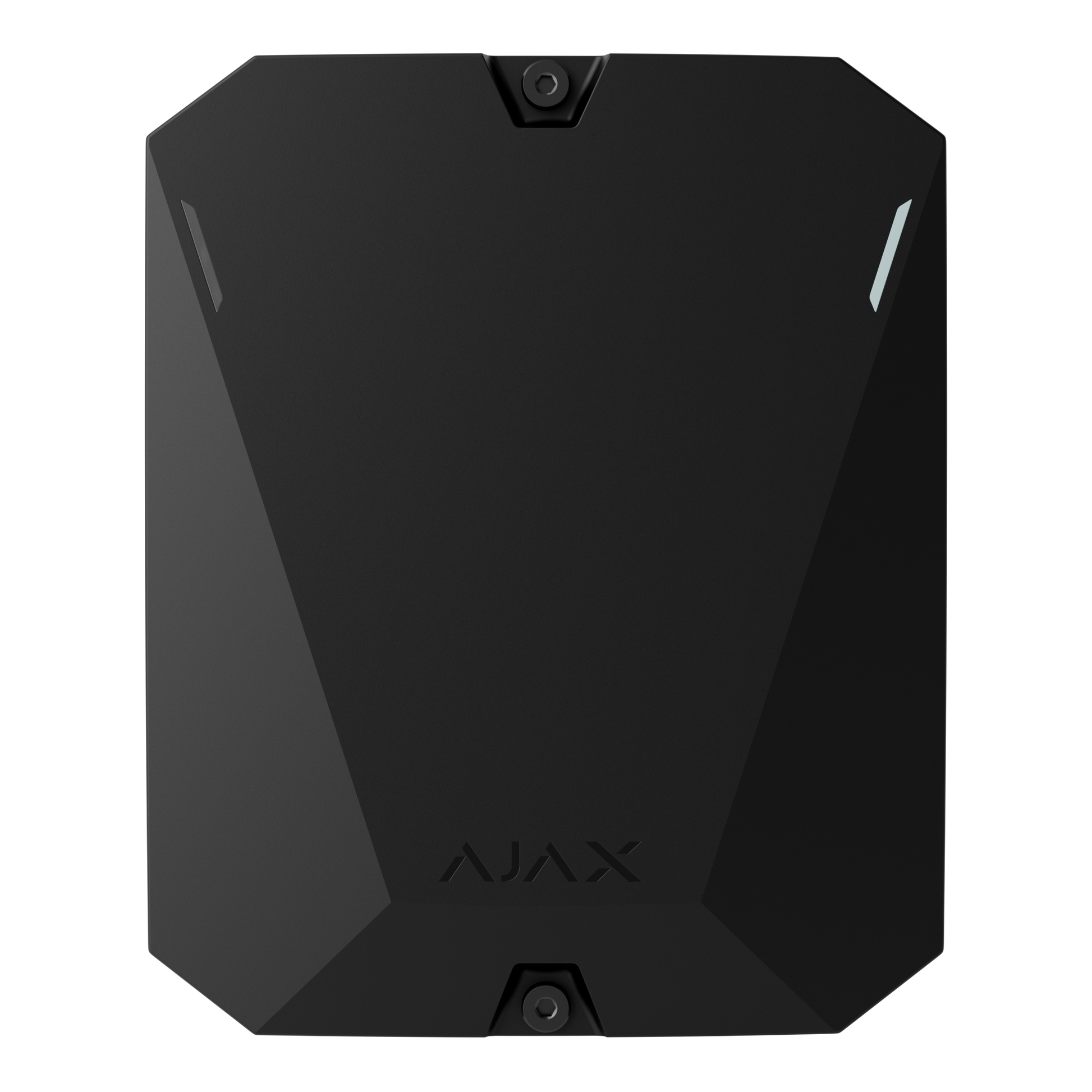

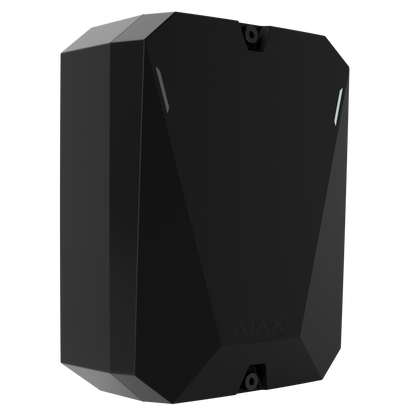

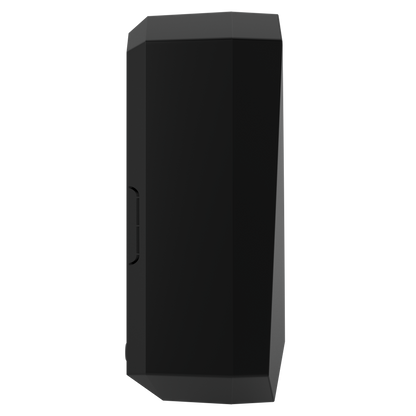

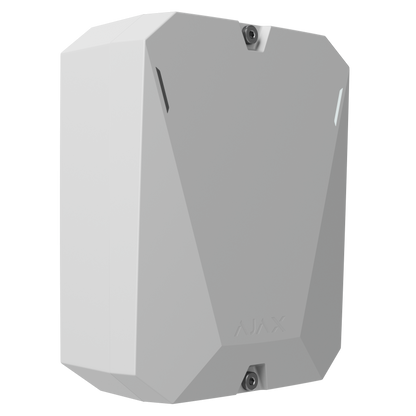

MultiTransmitter Jeweller
MultiTransmitter Jeweller
Couldn't load pickup availability
Module to integrate third-party wired detectors with Ajax security system.
Share

Technical Specifications
-
Enclosure
Colours
white,black
Dimensions
196 x 238 x 100 mm
Weight
805 g
Tampering alarm -
Installation
Operating temperature range
from -10°С to +40°С
Operating humidity
up to 75%
Protection class
IP50 -
Power Supply
Main power supply
100-240 V, 50/60 Hz
Backup power supply
12 V⎓ accumulator with up to 7 Ah capacity with a full charge cycle of up to 30 h
Backup battery not included -
Complete Set
Includes
MultiTransmitter
Power cable
Screw terminal block
Adapter
12 V battery connecting cable
Casing
Installation kit
Quick Start Guide
Key Features
-
Inputs for Wired Devices
Supports up to 18 inputs for third-party wired devices.
-
Long Wired DIstance
Supports cable runs up to 400 m between connected devices and the MultiTransmitter.
-
Quick Setup
Pairing with the hub is done simply by scanning a QR code.
-
Numerous Event Types
Every connected device supports a variety of event types.

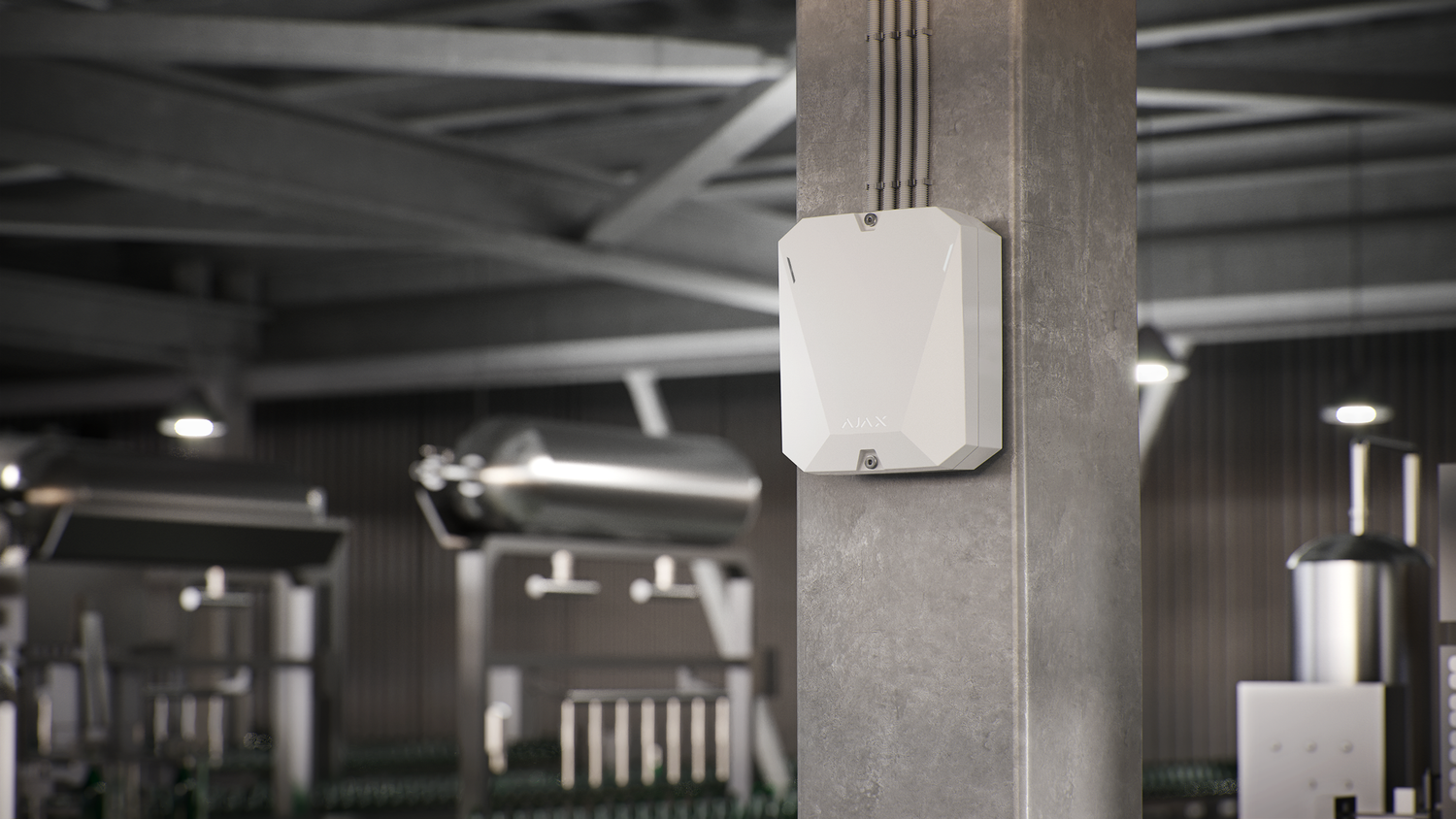

Repurposing an old wired alarm
MultiTransmitter lets you upgrade your security system without replacing your old wired devices. You can manage everything from the app, get clear notifications, and set up smart automations.

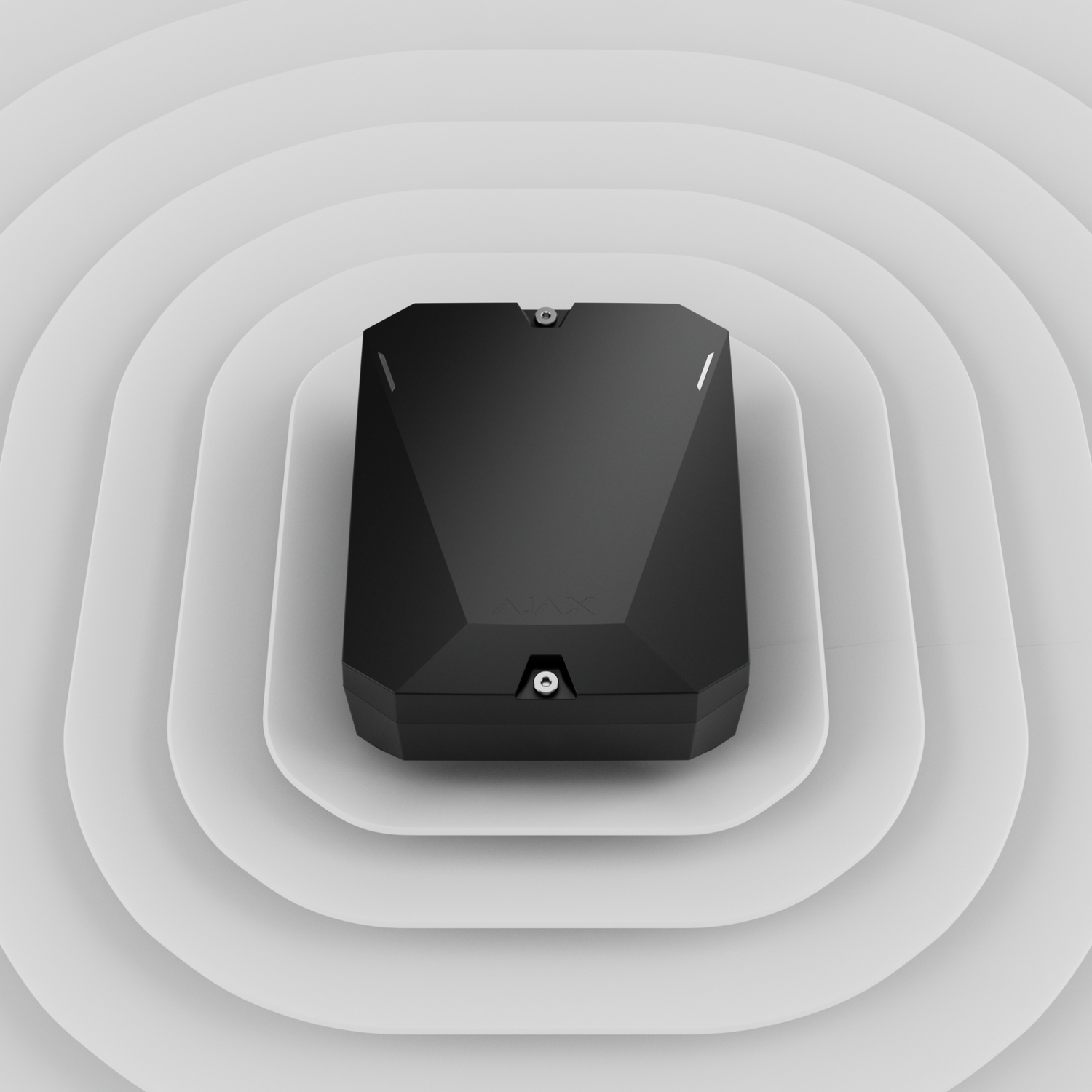

Jeweller Communication Technology
Jeweller is a secure wireless technology that keeps your devices connected quickly and reliably. It sends clear, instant alerts and constantly checks device status. With long‑range coverage up to 2,000 m.
