** Essential Device **

The functionality of other components depends on this hub for effective operation and interaction.
It is essential to have this item before purchasing any other products.

1 6

Clear Security Solutions

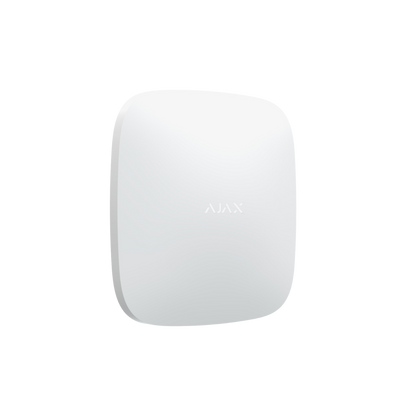

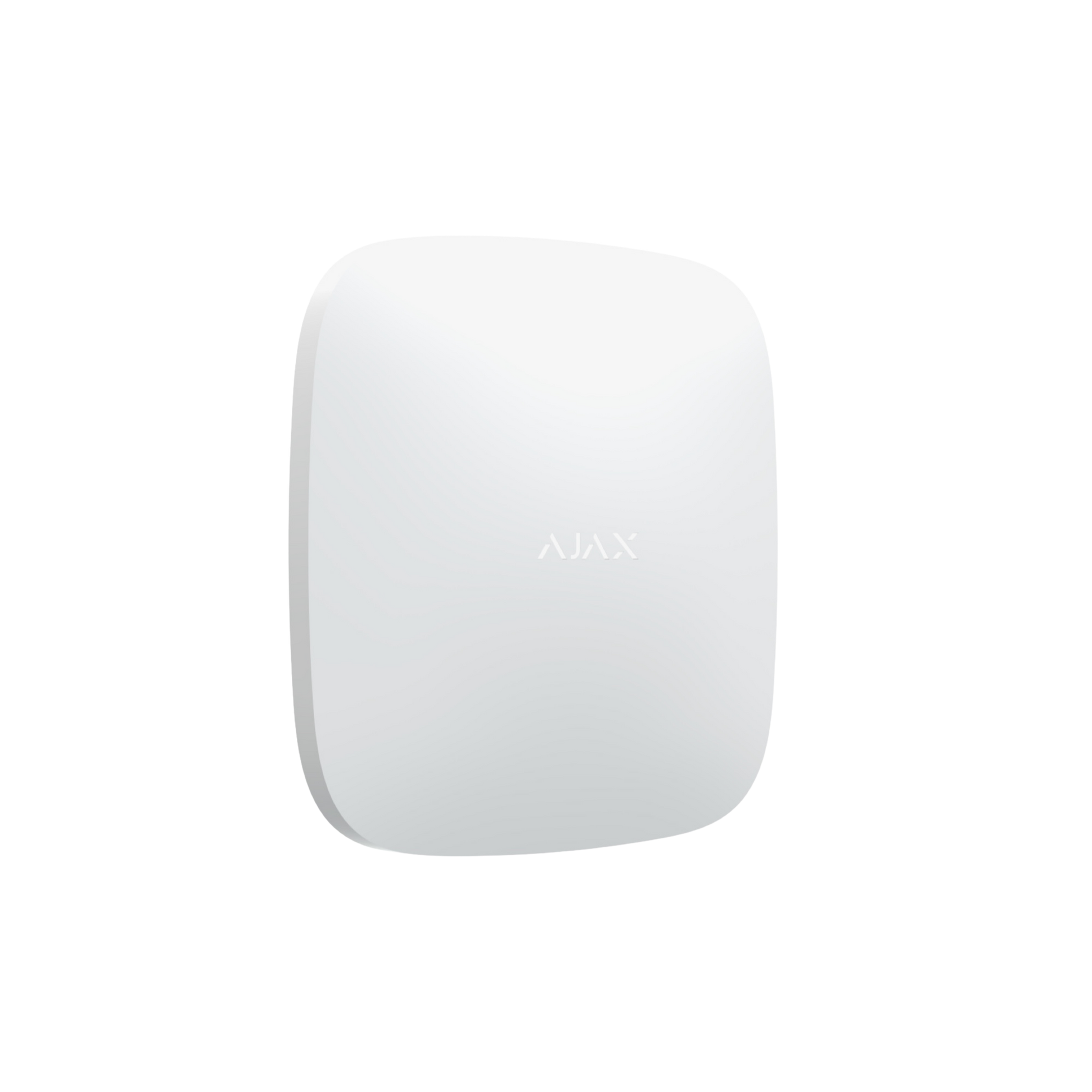

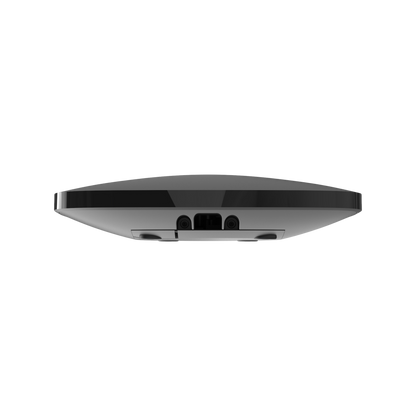

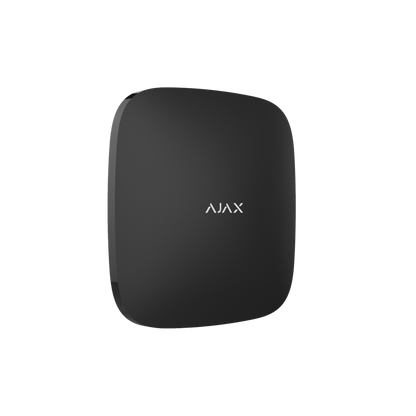

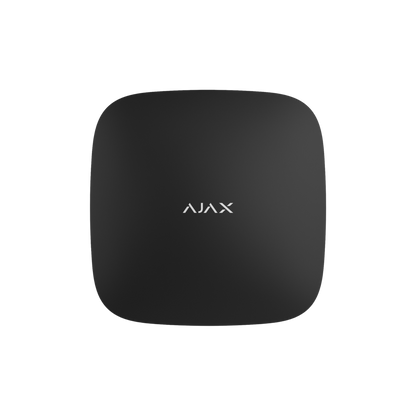

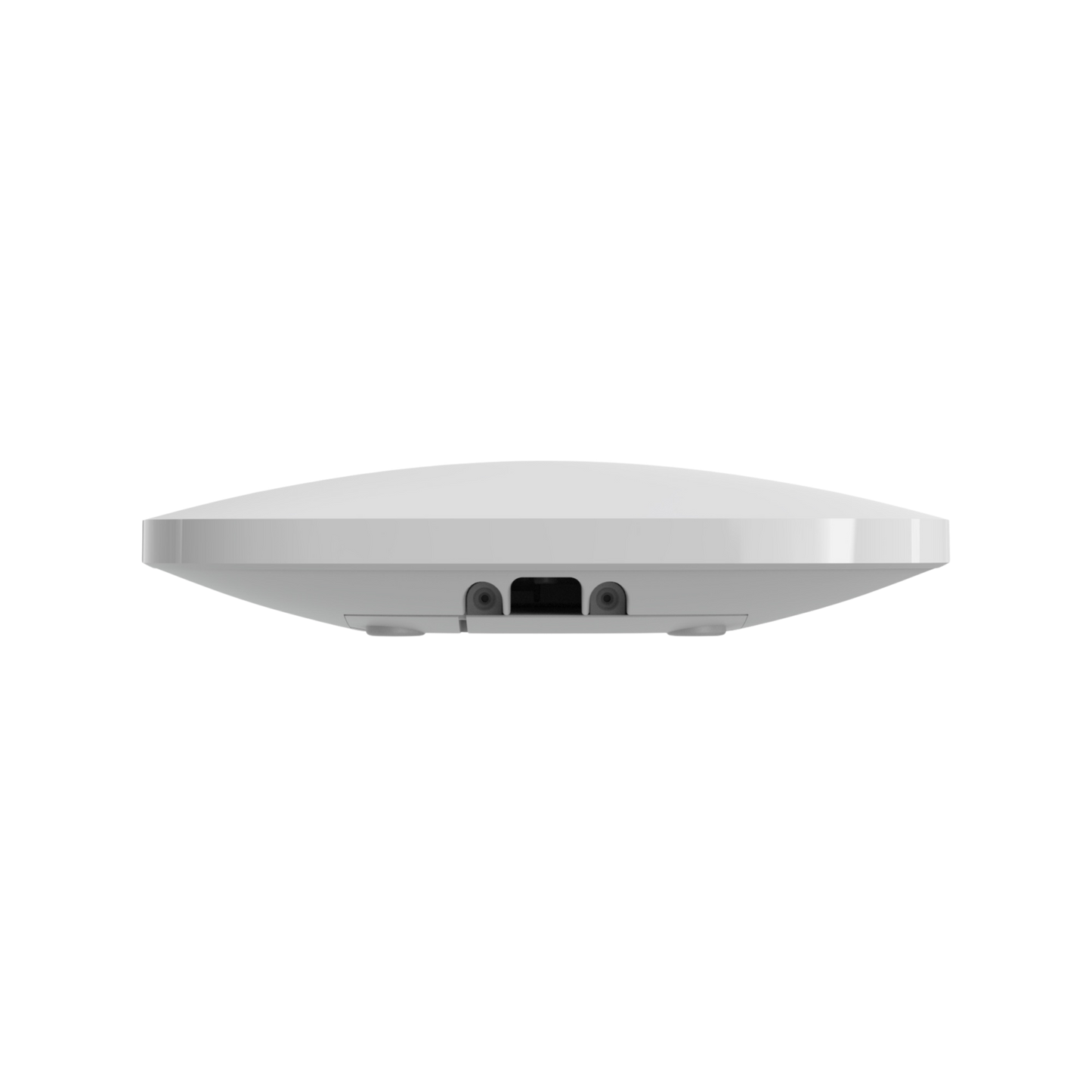

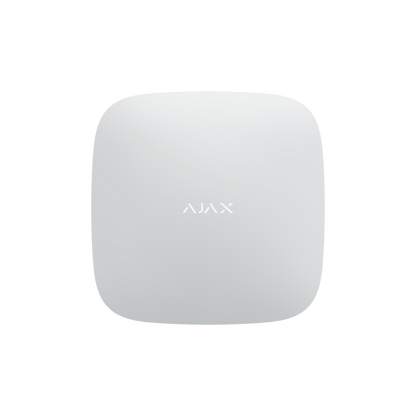

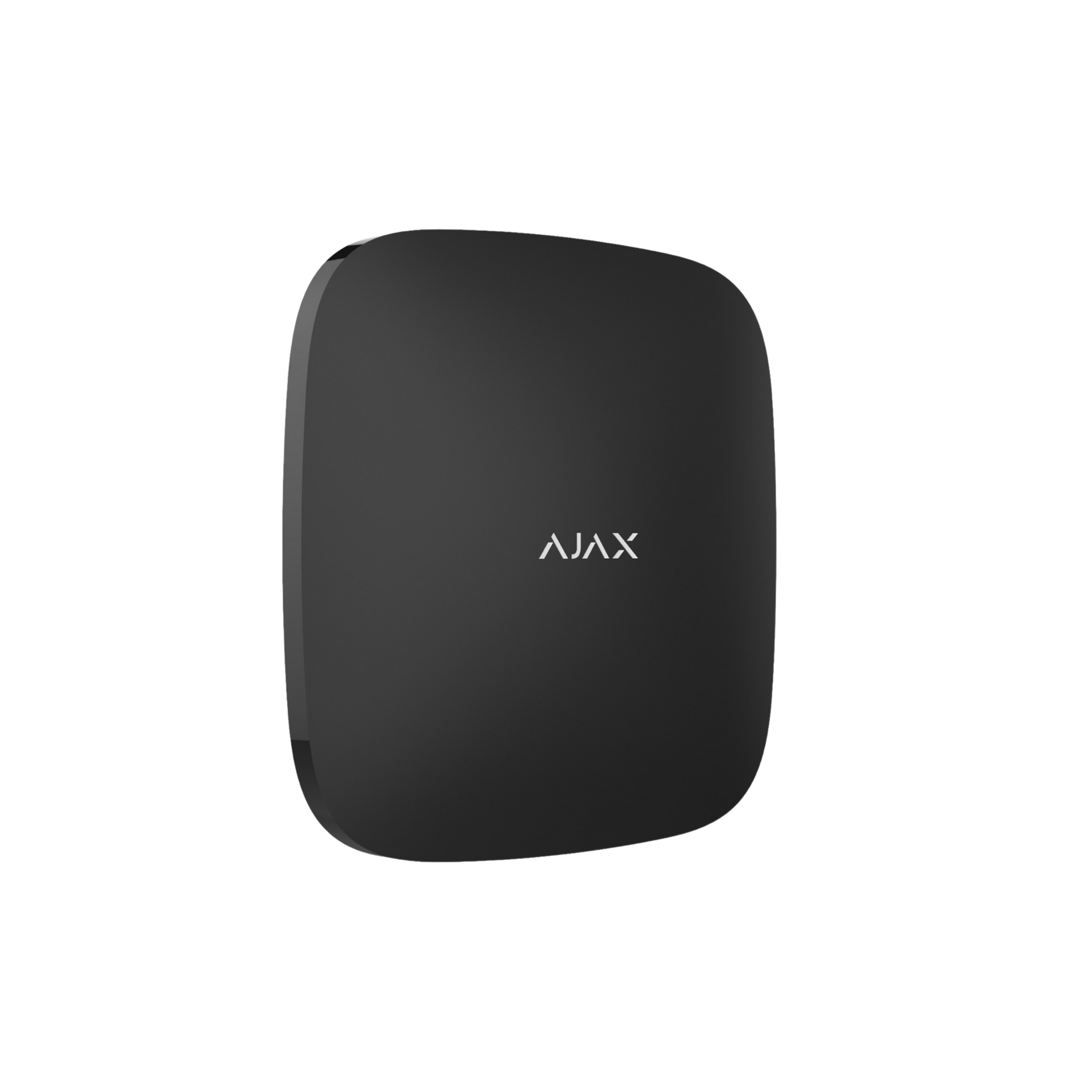

HUB 2 Plus Jeweller

HUB 2 Plus Jeweller

$436.00 CAD
$436.00 CAD
Sale Sold out
Color: White

Wireless control panel with support for photo verification. Connectable via Wi-Fi, Ethernet, and two SIM cards.
(2G/3G/LTE)

The core controller that powers and coordinates the entire security system. All connected devices rely on this hub to operate, making it essential for both home and commercial setups.

View full details

Technical Specifications

  • Enclosure

    Colours
    white,black

    Dimensions
    163 x 163 x 36 mm

    Weight
    351 g

    Tampering alarm

  • Installation

    Operating temperature range
    from -10°С to +40°С

    Operating humidity
    up to 75%

    Protection class
    IP20

  • Power Supply

    Main power supply
    100-240 V~, 50/60 Hz

    Backup power supply
    Li-Ion battery with 3 A.h capacity

  • Complete Set

    Includes
    Hub 2 Plus Jeweller
    Power cable
    Ethernet cable
    SIM card (Depends on the region of sale)
    Installation kit
    Quick Start Guide

Key Features

  • Backup Battery

    Includes a built-in backup battery, providing up to 15 hours of operation in case of a power outage.

  • 4 Communication Channel

    Ensures reliable alarm delivery by supporting four simultaneous communication channels: Ethernet, Wi‑Fi, and two independent SIM cards.

  • Photo Verification

    Supports devices with detectors that, when triggered, capture a series of photos showing the cause of the alarm.

  • Up to 200 Devices

    Can add up to 200 different devices to hub.

  • Up to 100 Cameras or DVRs

    Can connect to hub up to 100 cameras or recorders.

  • Up to 200 Users

    Can give access to up to 200 users within the same organization or household.

  • Up to 64 Scenarios

    Automate actions, allowing the system to respond instantly to events such as alarms, schedule changes, or device states.

  • Up to 25 Security Groups

    Organize devices into separate, independently controlled partitions.

  • Up to 5 Range Extenders

    Ensure stable connection of all devices in large properties, multi‑floor buildings, or areas with thick walls or interference.

  • Easy Install

    Easy and clear instructions for a quick and clean installation.

  • Pairing via QR Code

    Easy and fast pairing done through QR code.

  • Remote Control

    Control and manage devices remotely through Ajax apps.

Always connected

  • Can connect to two different Internet providers via Ethernet and Wi‑Fi.
  • Maintains two cellular networks as backup.
  • Channel switching is seamless.

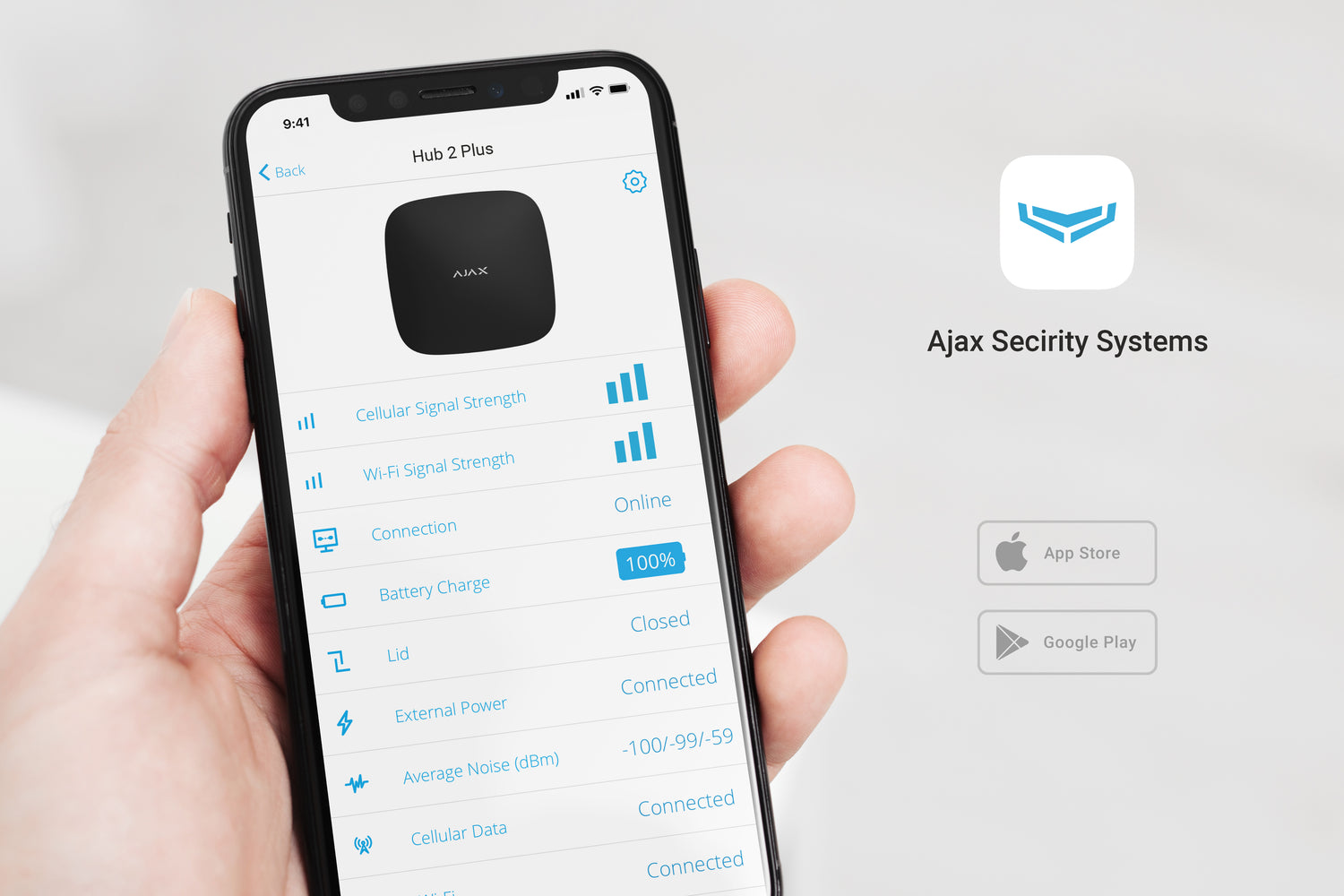

Controlled via apps

  • Intuitive way to operate the system.
  • Apps connect to the hub through a secure, encrypted channel via Ajax Cloud.
  • Users can manage security, adjust hub settings, configure devices, create automation scenarios, and monitor events.

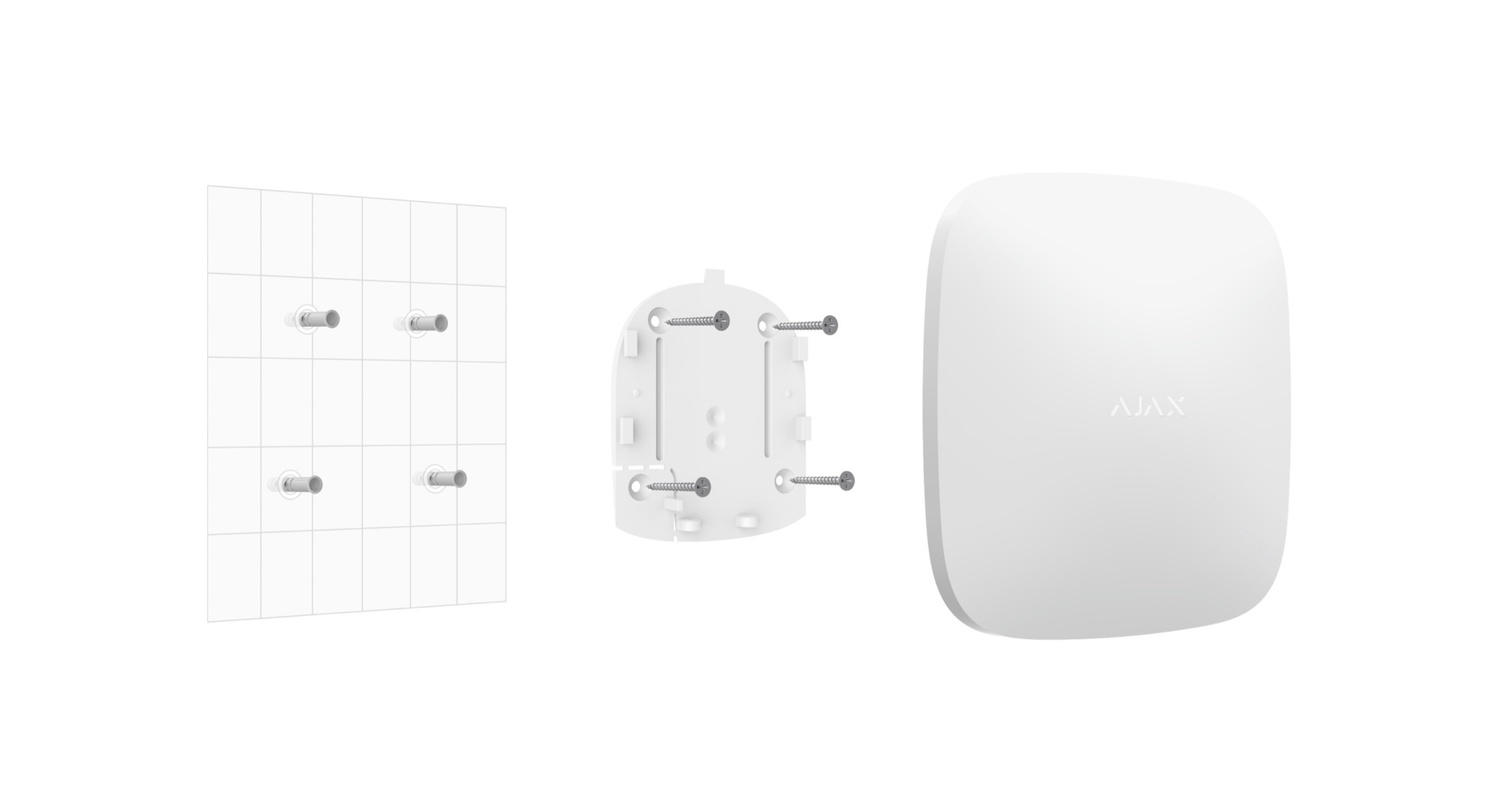

SmartBracket installation panel

  • Mounting panel with SmartBracket design.

Compliance
