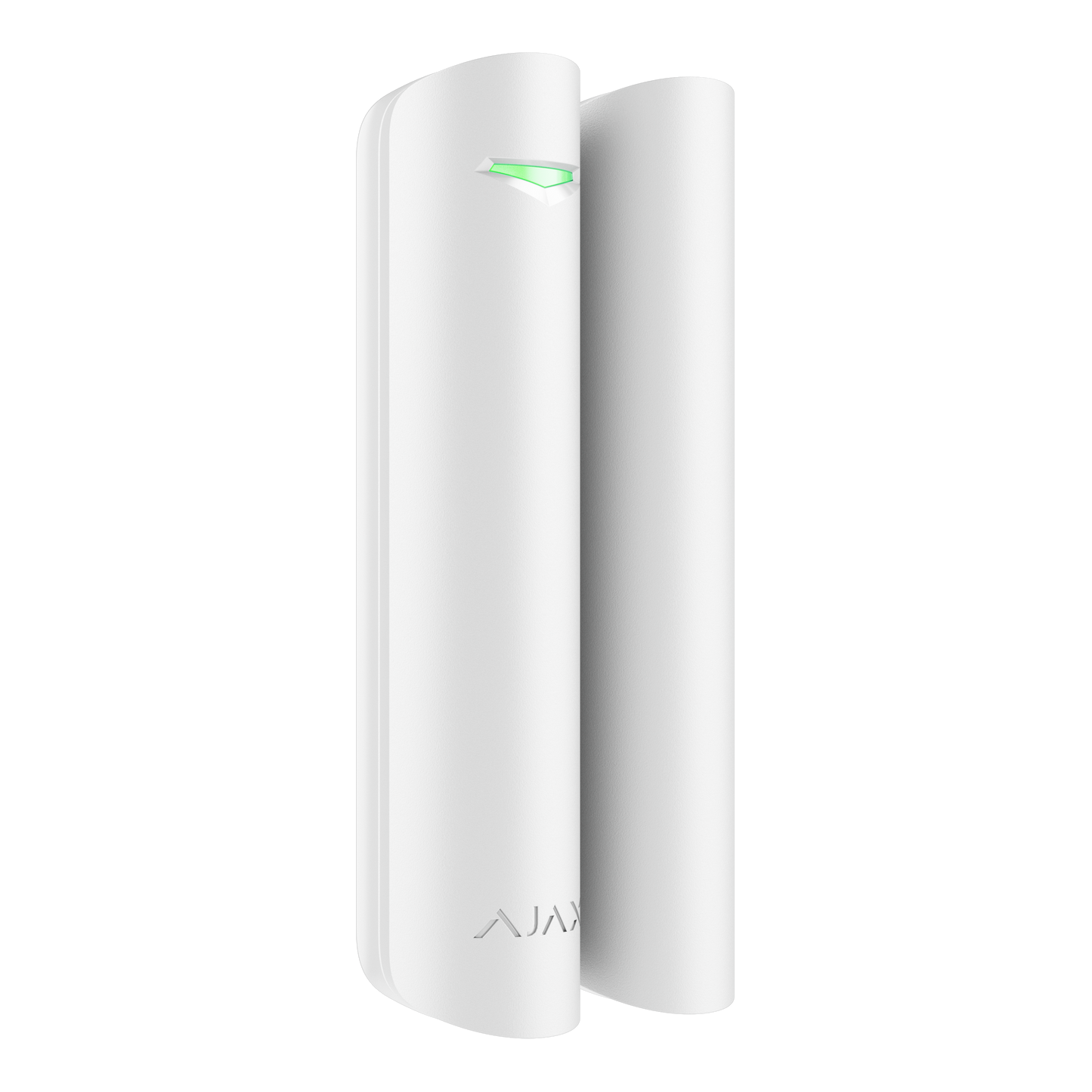

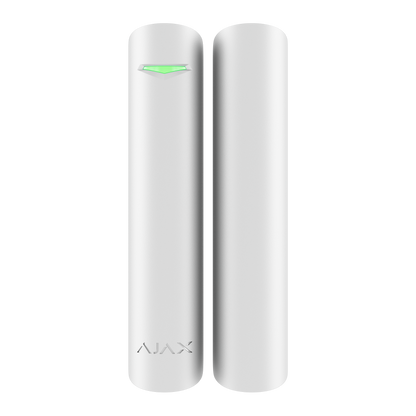

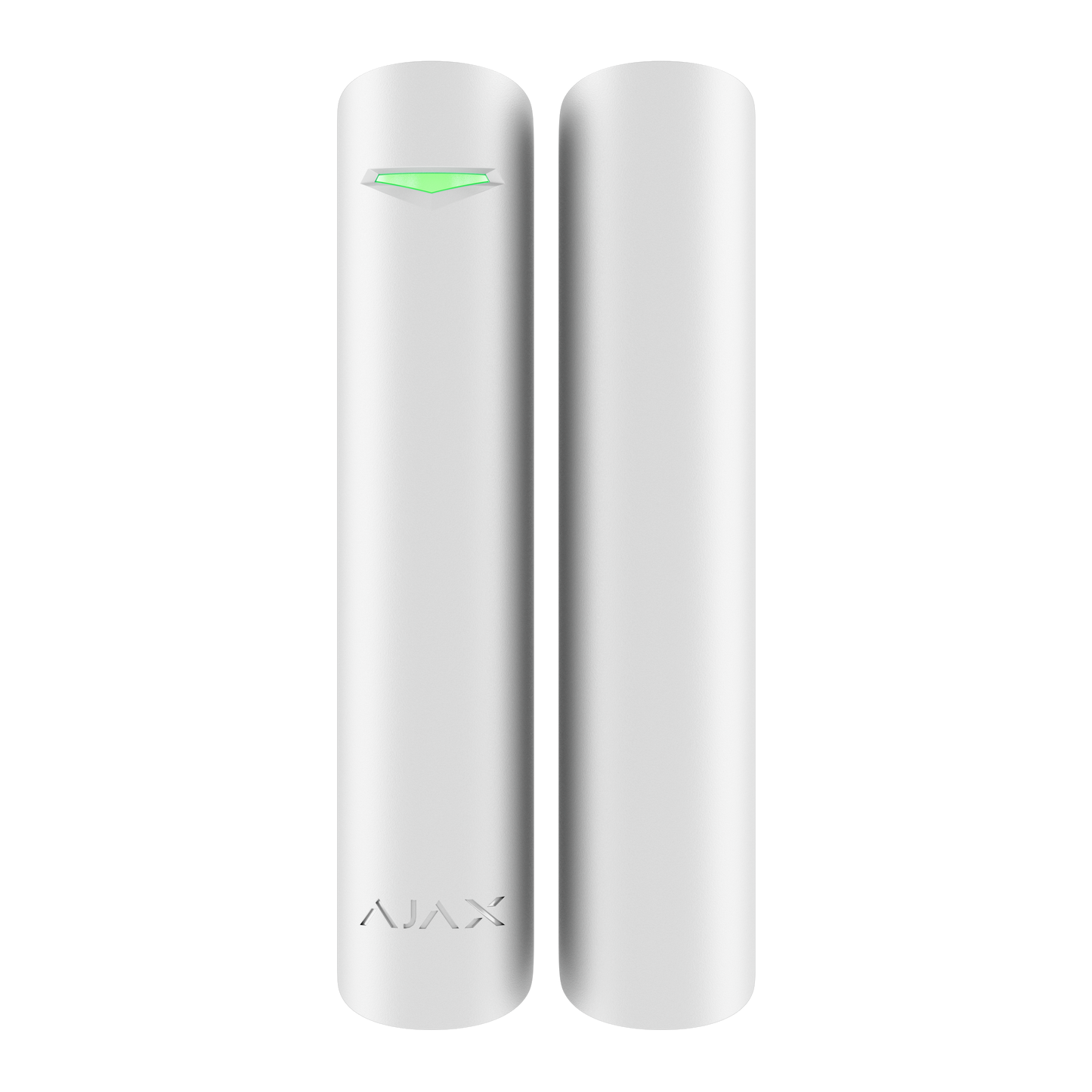

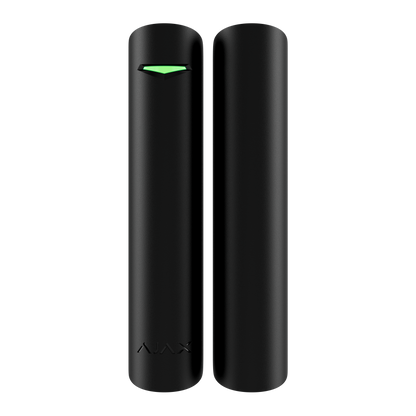

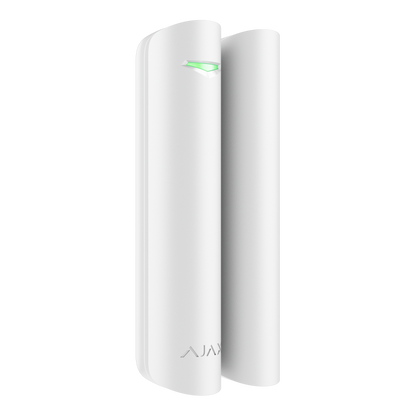

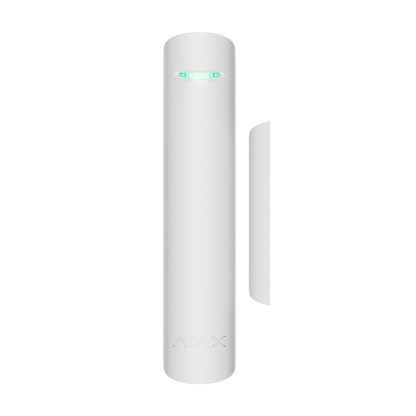

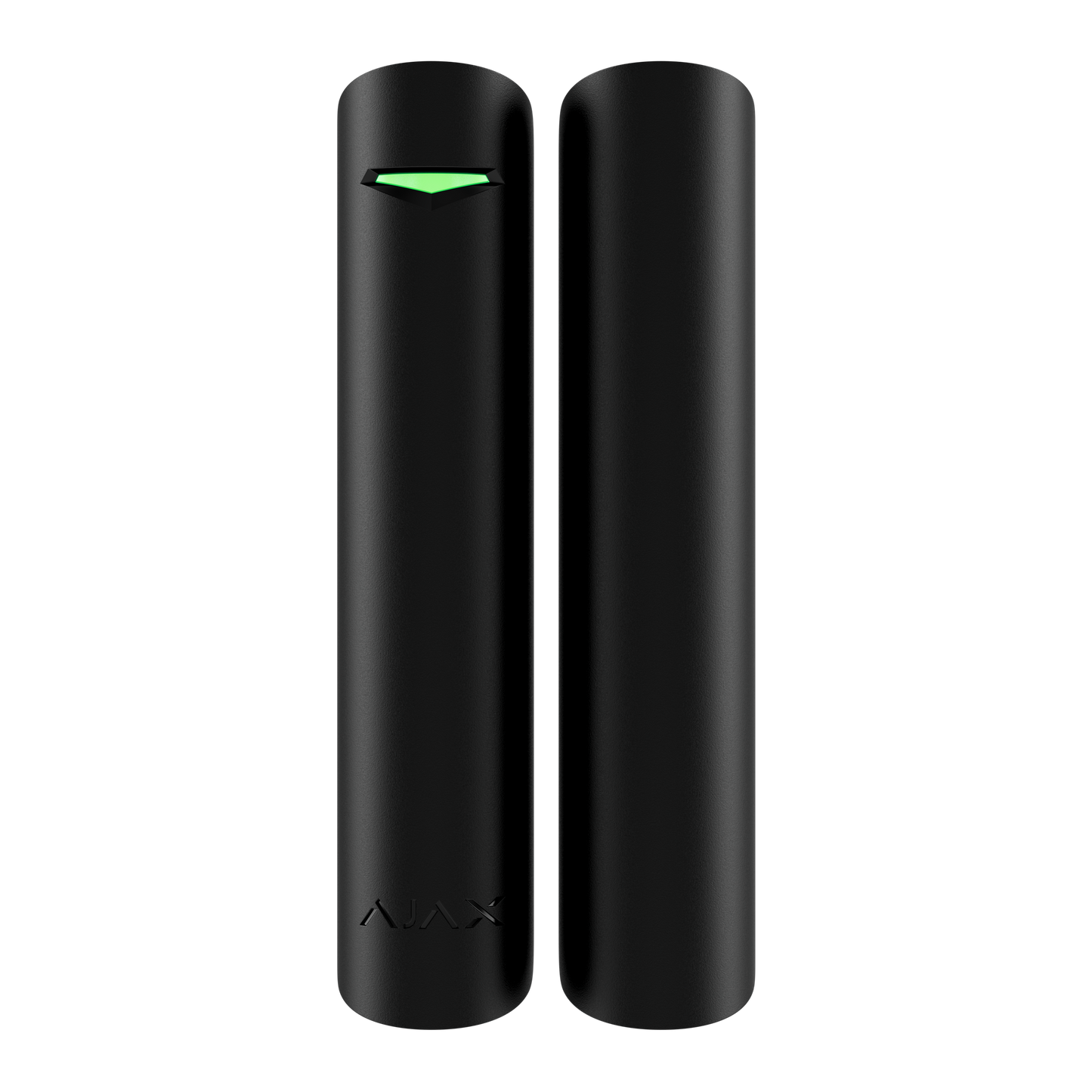

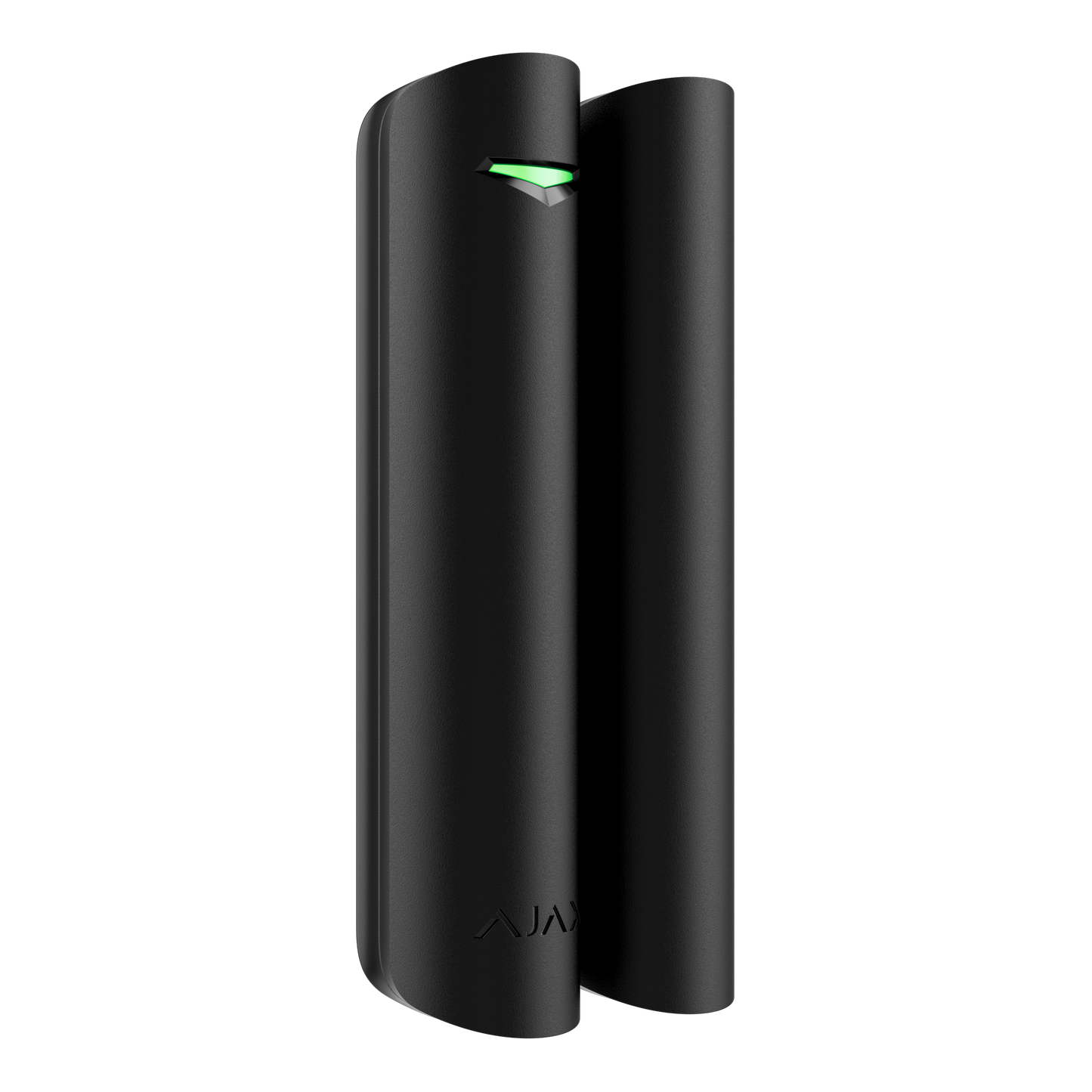

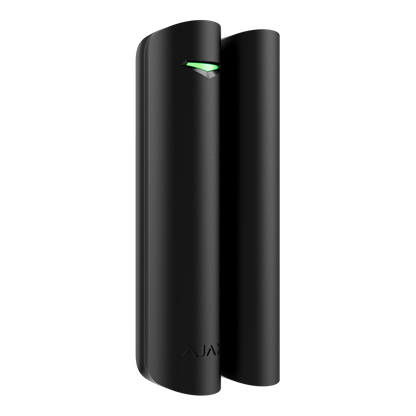

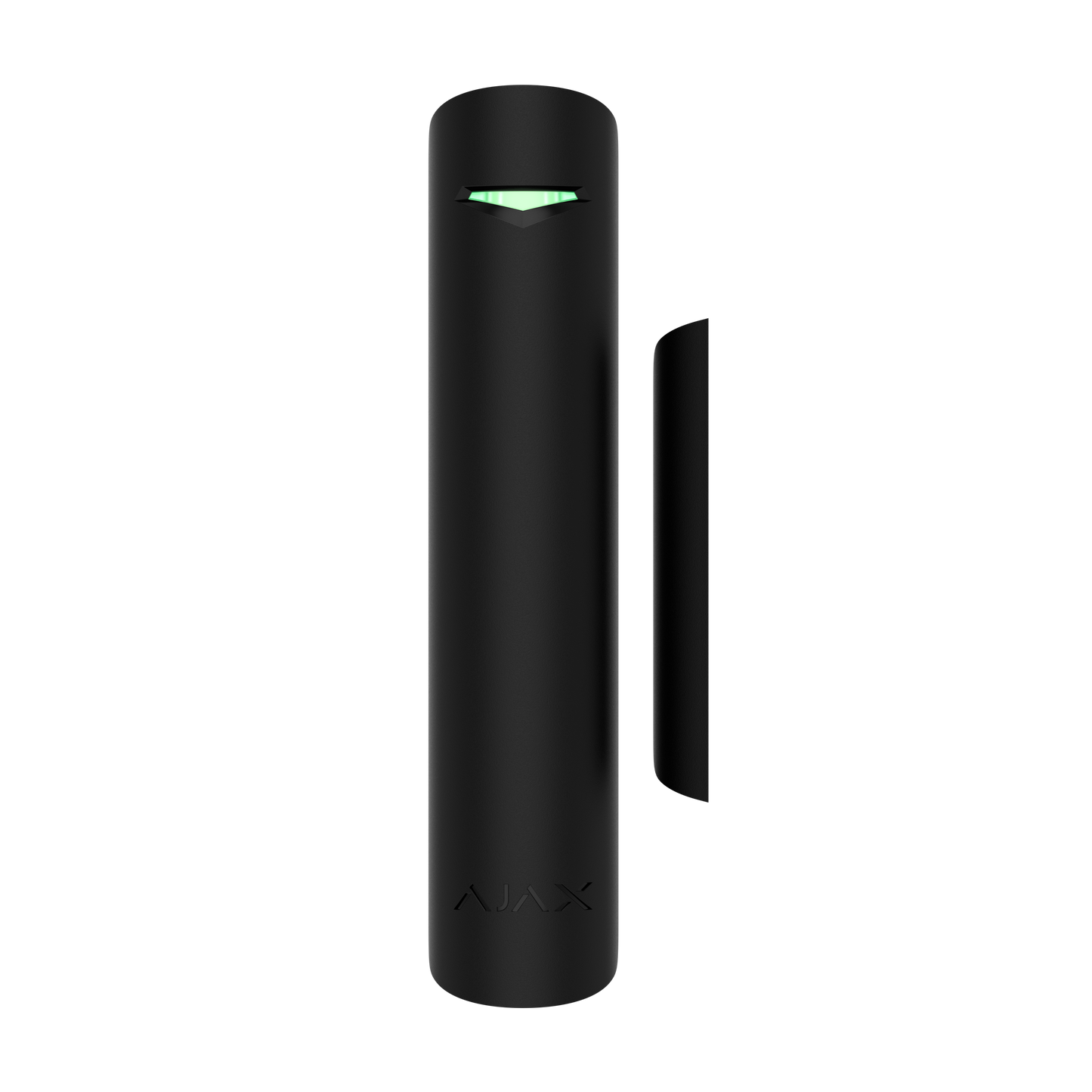

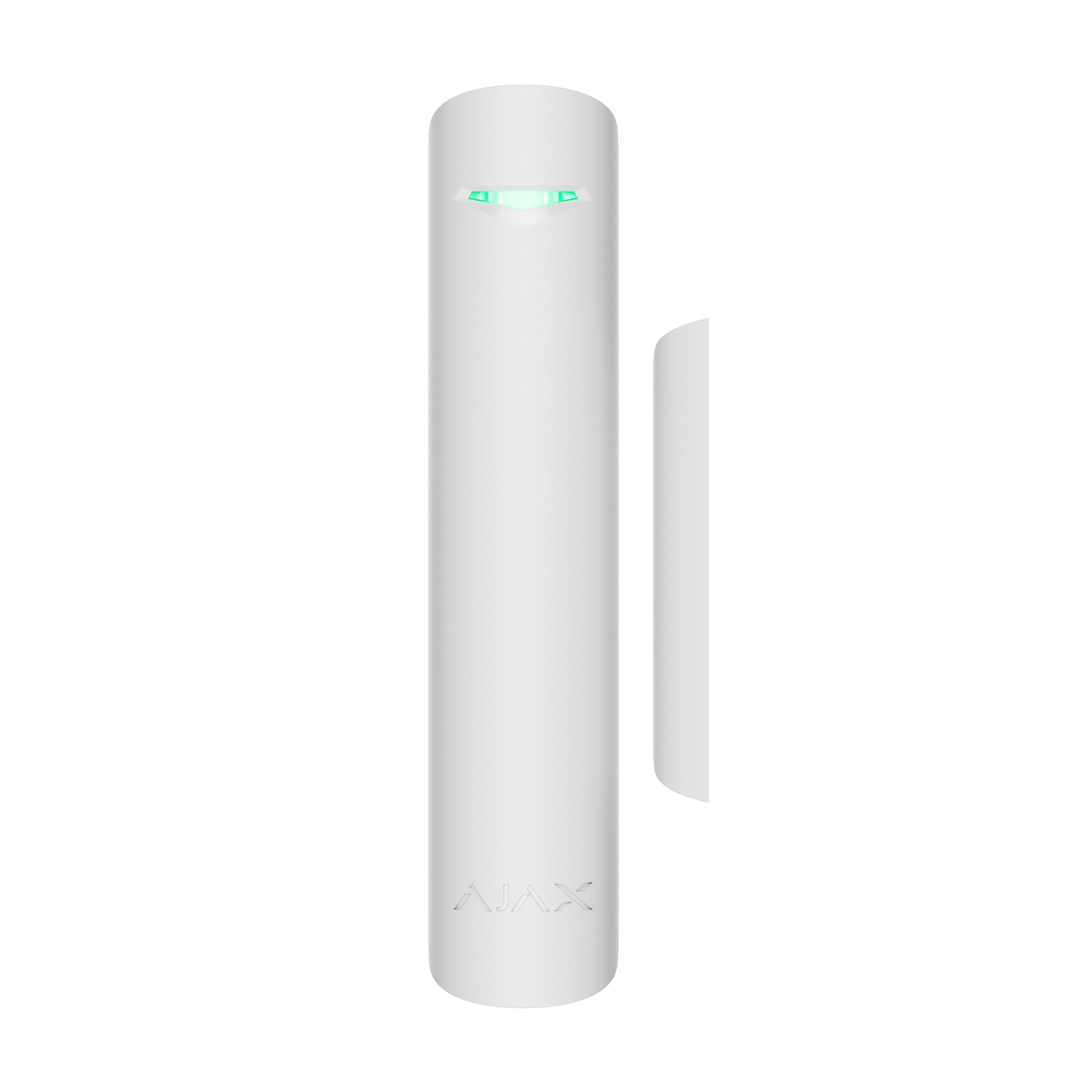

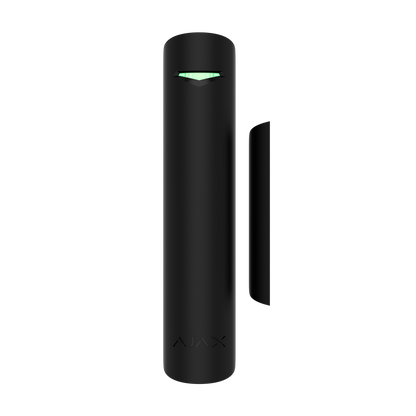

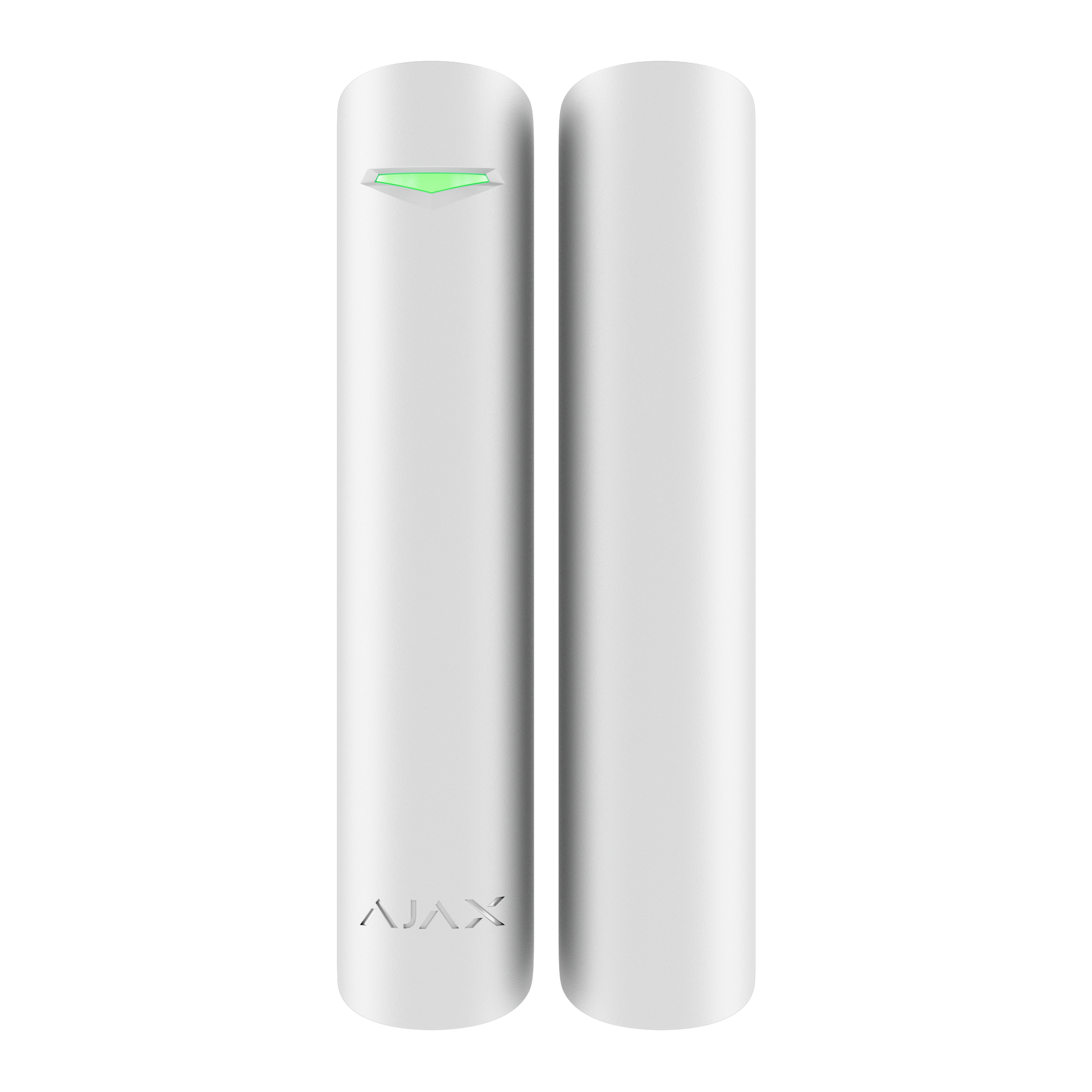

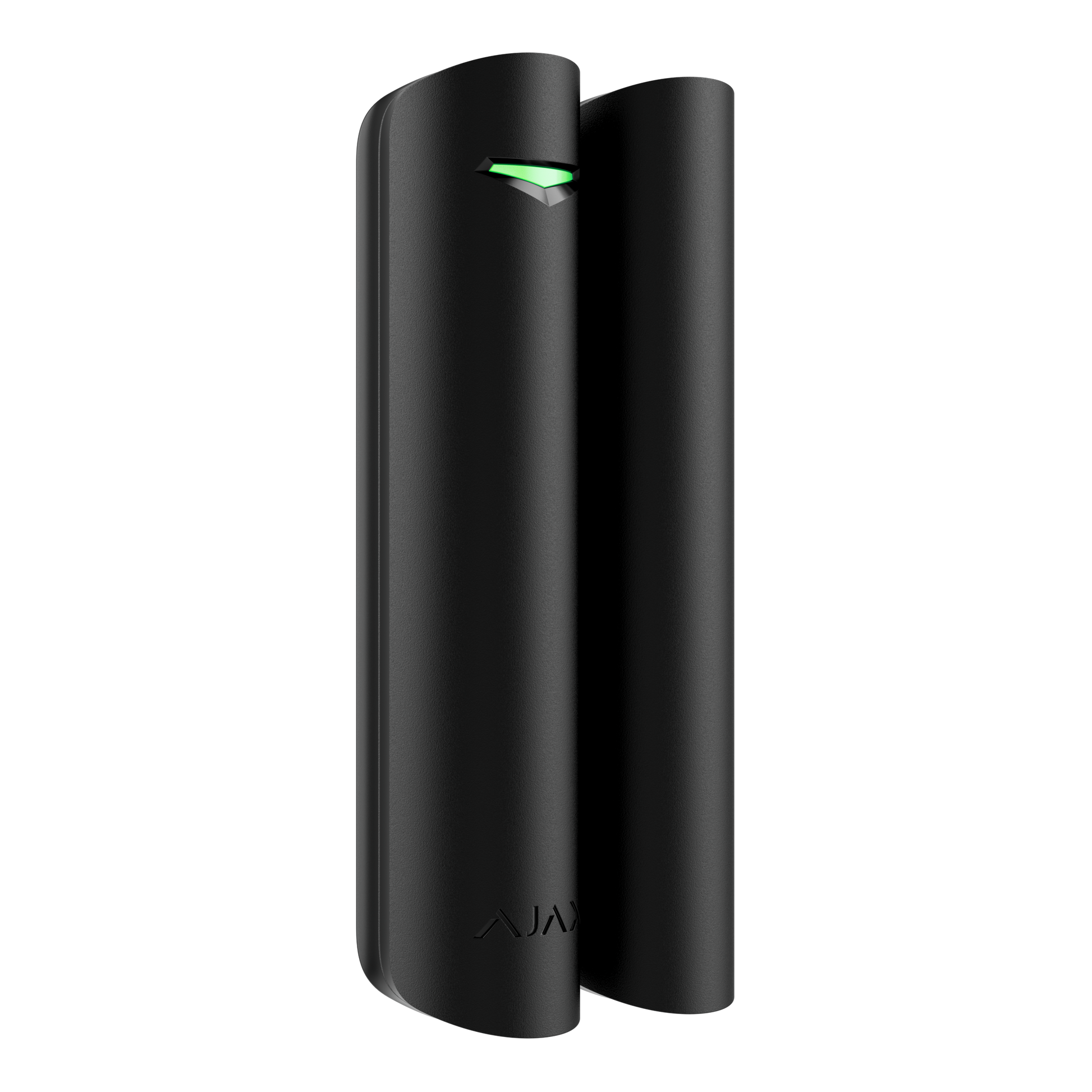

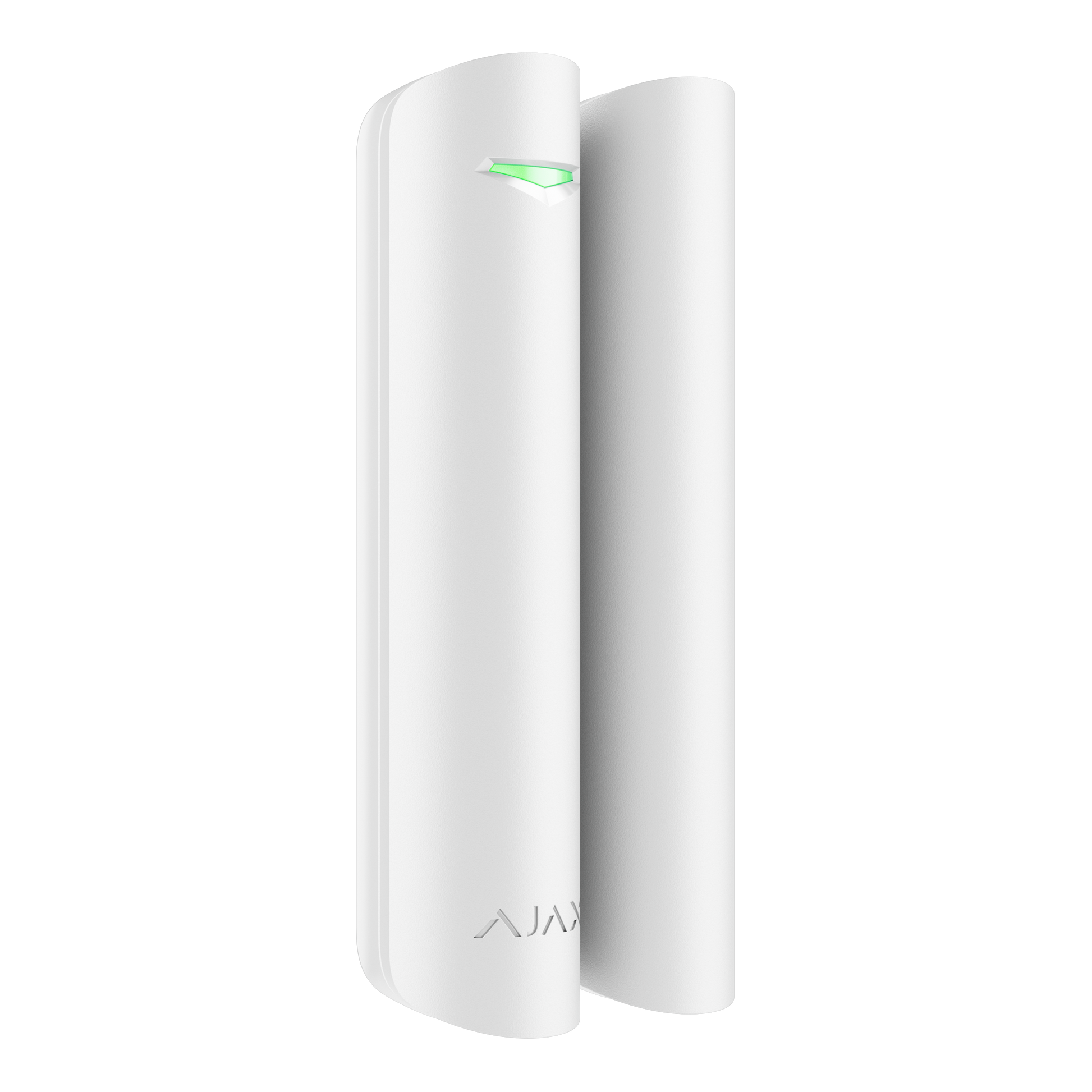

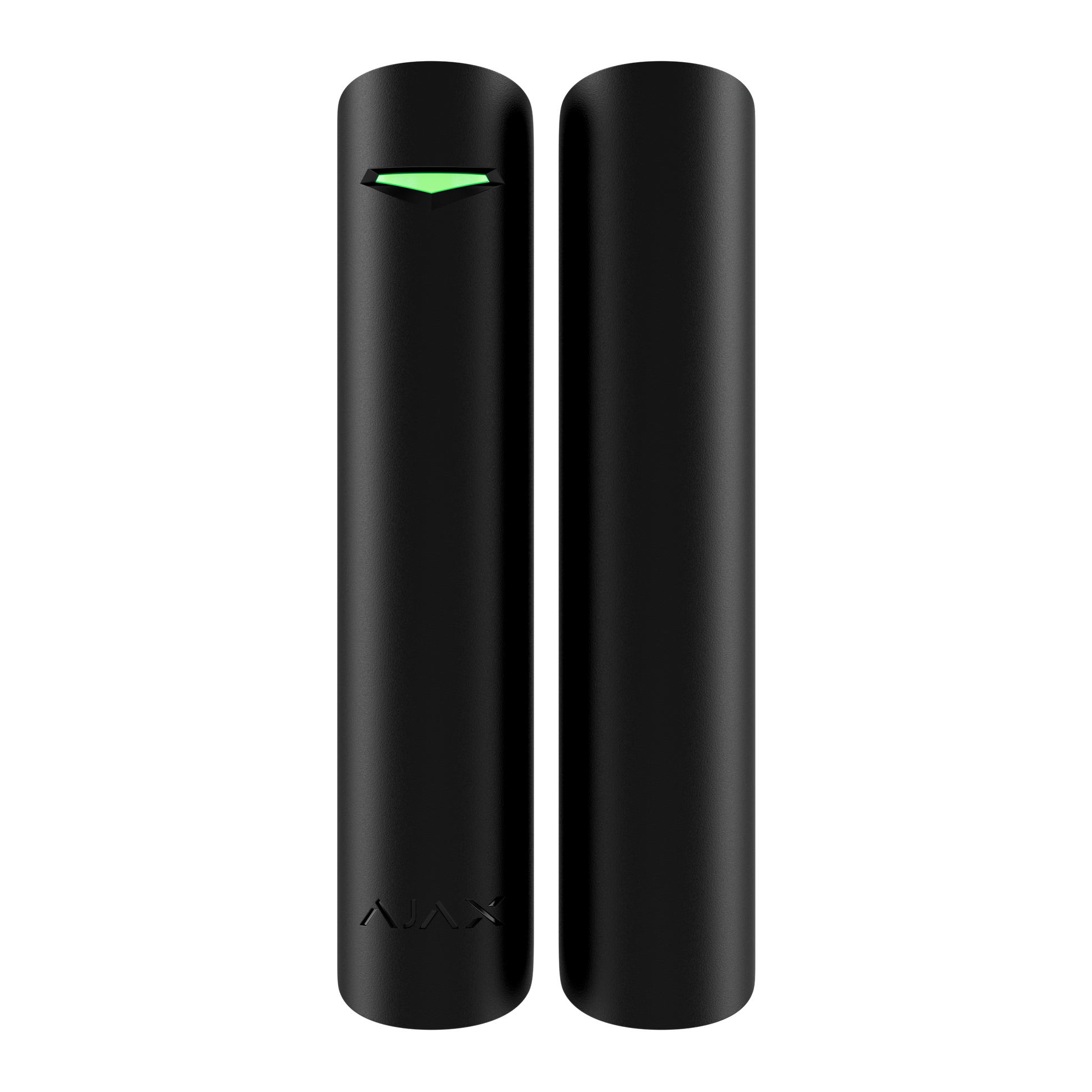

DoorProtect Jeweller
DoorProtect Jeweller
Couldn't load pickup availability
Wireless opening detector with reed switch.
Share

Technical Specifications
-
Enclosure

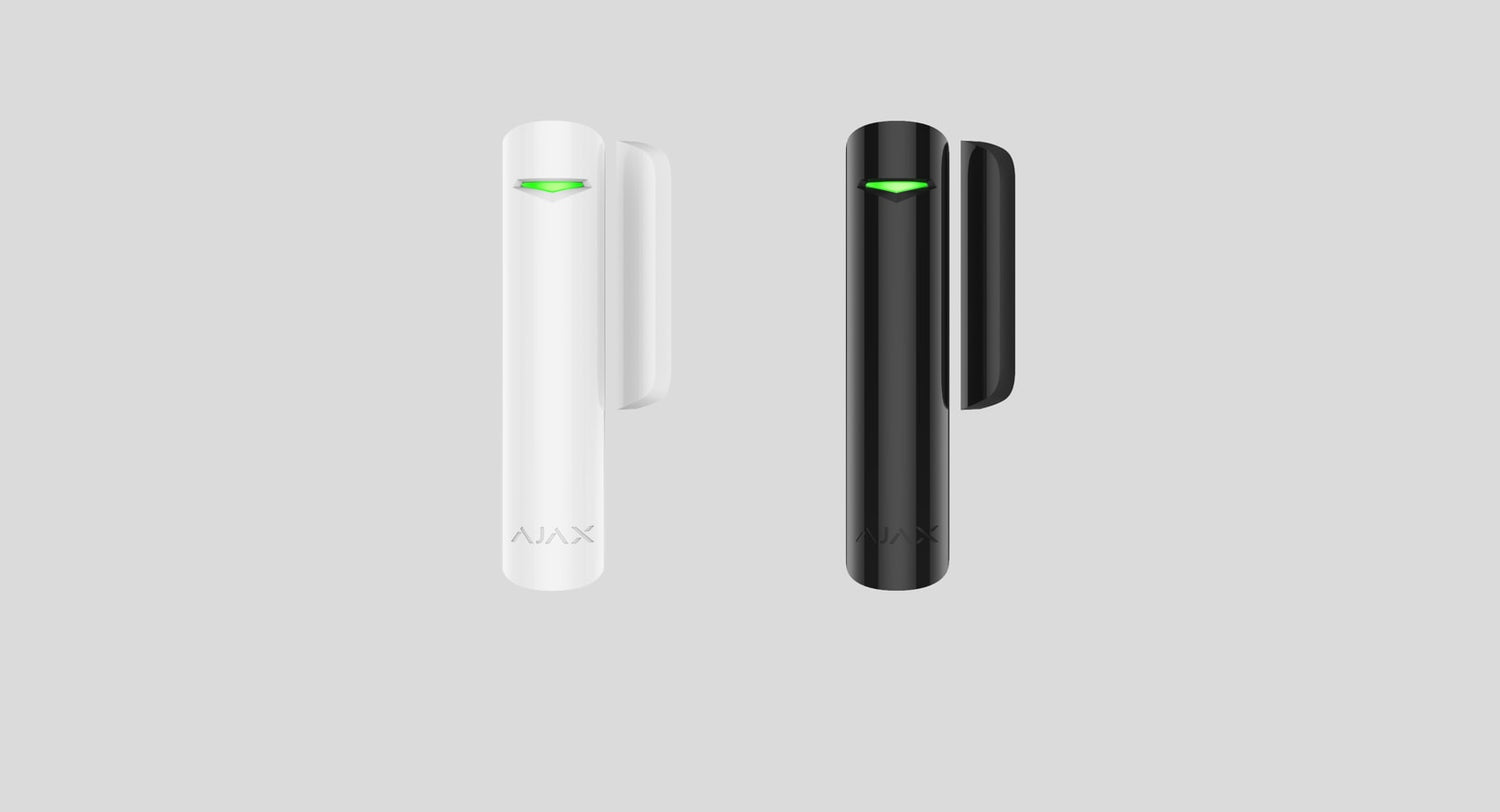

Colours
white,black
Dimensions
20 x 90 mm
Weight
29 g -
Installation
Operating temperature range
from -10°С to +40°С
Operating humidity
up to 75%
Protection class
IP50 -
Power Supply
Battery
1 x CR123A
Pre-installed
Battery life
up to 7 years -
Complete set
Includes
DoorProtect Jeweller
2 x magnets (small and big)
1 x CR123A battery
Pre-installed
SmartBracket mounting panel
Installation kit
2-wire connector for third-party NC detector
Quick Start Guide
Key Features
-
Opening Detection
Delivers reliable opening detection and protection against chattering.
-
Consistent Autonomy
Up to 7 years of operations. Low battery notification through app.
-
Quick Install
Pairing done through QR code. Remote access and configuration through Ajax apps.
-
Additional NC Input
Includes additional NC input for integrating a third-party detector.
High‑quality magnetic contact
- Consistent sensing performance with the magnet mounted to the right.
- Plastic enclosure designed to shield the reed sensor

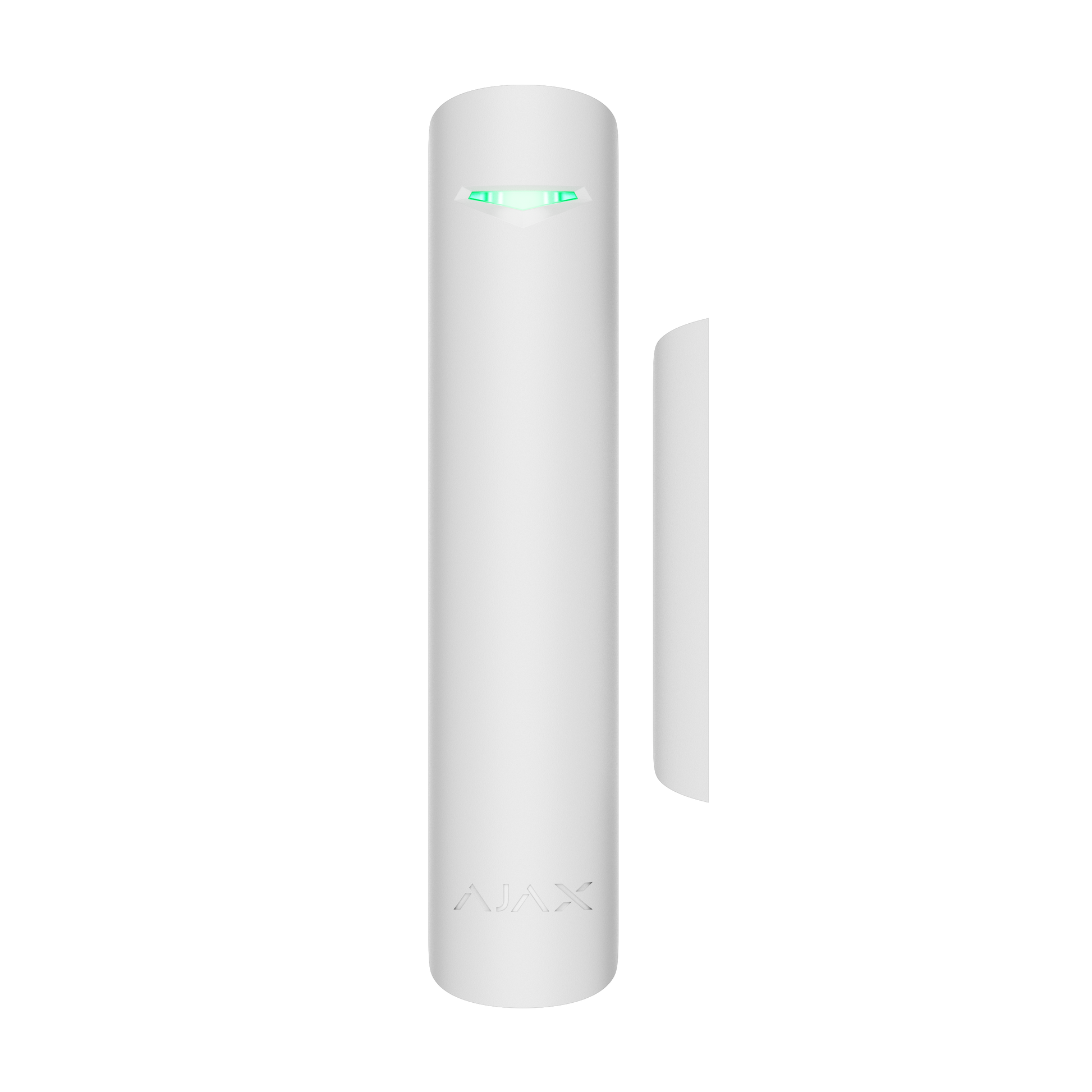

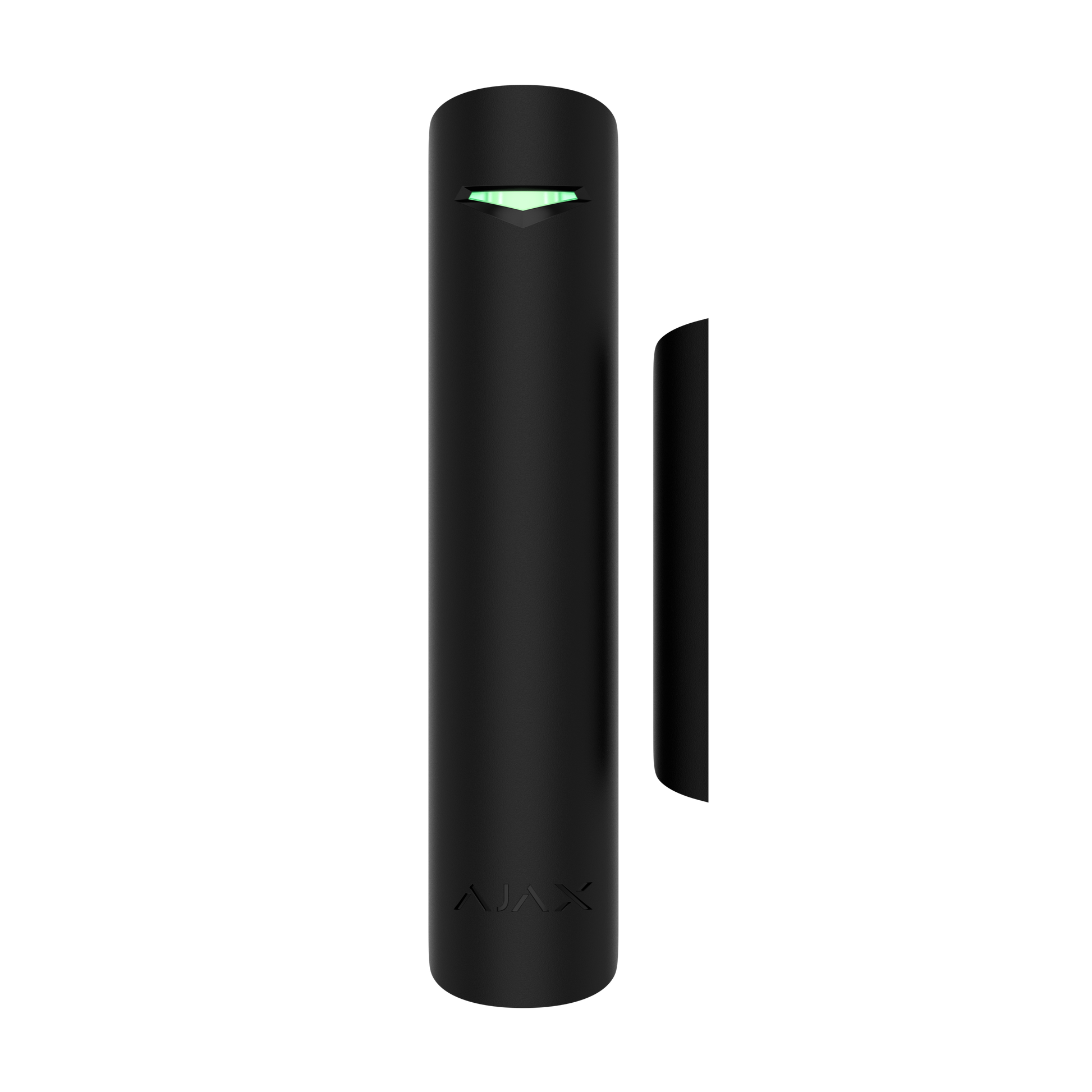

Two different magnet sizes
- Offers small and large magnets to suit various installation scenario

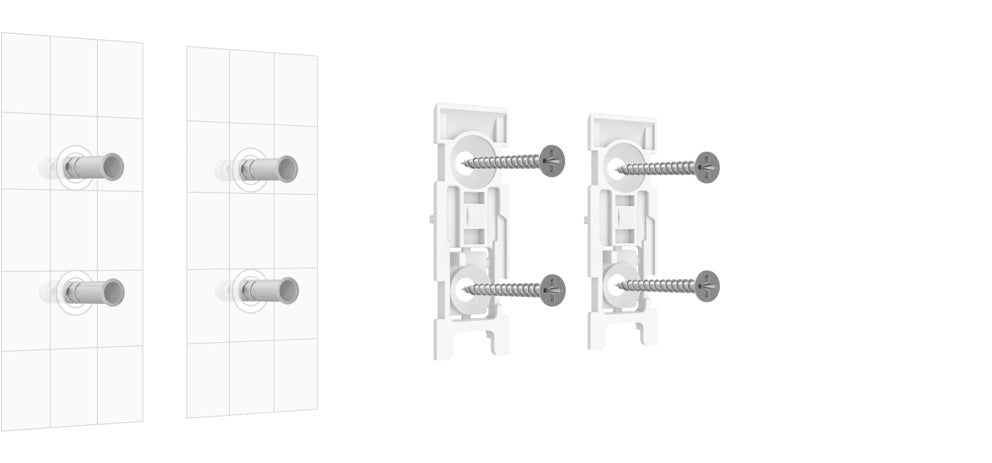

SmartBracket Mounting Panel
- Mounting bracket equipped with multiple fastening points
